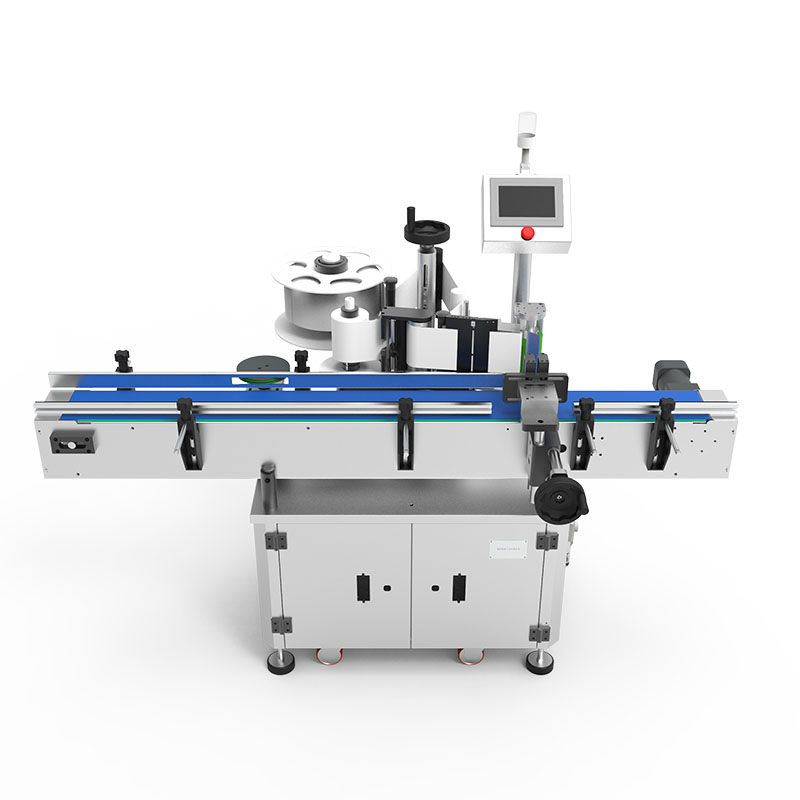

Model GST-212 Automatic Round Bottle Labeling Machine (Pneumatic Push)
Labeling accuracy ±1mm
Labeling speed 10-45pcs/min (depends on the label size)
Product size Diameter φ20-150mm, height 10-300mm
Label size Length 15-450mm, (backing paper) width10-150mm
Conveyor’s height 820±50mm
Label roll diameter Outer Max.250mm, inner 76mm
Surrounding temperature 10~40℃
Surrounding humidity 15-85%
Power 1kW
Power Supply AC220V, 50Hz, single phase
Air supply 0.5-0.8MPa, 10L/min
Machine dimension 1800(L)*1100(W)*1300(H)(mm)
Machine weight 180kg
Packing Crate dimension 1850(L)*1150(W)*1400(H)(mm)
Gross weight 230kg
| Quantity: | |
|---|---|
GST-212Y
GOSUNM
Banner

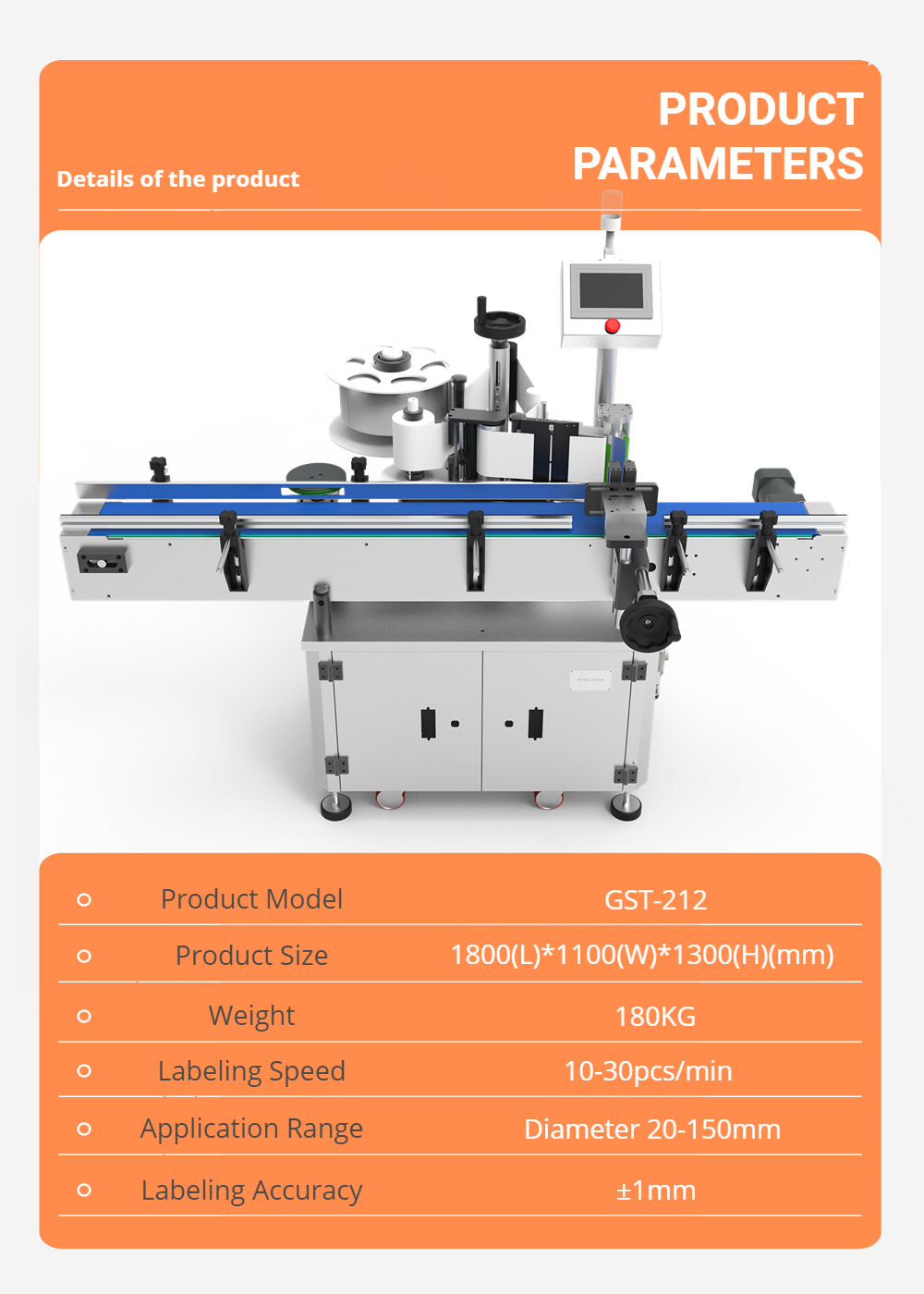

Product Information
Model | GST-212 Automatic Round Bottle Labeling Machine (Pneumatic Push) |
Labeling accuracy | ±1mm |
Labeling speed | 10-45pcs/min (depends on the label size) |
Product size | Diameter φ20-150mm, height 10-300mm |
Label size | Length 10-450mm, (backing paper) width10-150mm |
Conveyor’s height | 800±50mm |
Label roll diameter | Outer Max.250mm, inner 76mm |
Surrounding temperature | 10~40℃ |
Surrounding humidity | 15-85% |
Power | 1kW |
Power Supply | AC220V, 50Hz, single phase |
Air supply | 0.5-0.8MPa, 10L/min |
Machine dimension | 1800(L)*1100(W)*1300(H)(mm) |
Machine weight | 180kg |
Packing Crate dimension | 1850(L)*1150(W)*1400(H)(mm) |
Gross weight | 290kg |
Gold quality testing, ISO quality management system
Optional circumferential positioning detection device to achieve circumferential positioning labeling.
Optional ribbon coder and inkjet printer can be used to print the production batch number and other information at the same time, reducing the packaging process and improving production efficiency. Widely used in food, cosmetic, chemical and pharmaceutical industries.
All standard equipment is CE certified.
Free design by senior experts and professional team
Designing the right automation equipment according to the customer's budget to reduce costs and speed up the process.
We follow the international ISO quality management system.
We use ERP, PDM, CRM and other scientific and standard management systems to achieve information management and traceability, and the equipment is tested 24-48 hours before leaving the factory.
