18000BPH Automatic Rotary Highs Speed Sticker Labeing Machine

It is suitable for round, square, flat and oval plastic bottles, glass bottles and metal bottles, and has a very wide range of applications in the water beverage industry, daily chemical industry, spices, pharmaceuticals and other industries. You can choose the right configuration according to your production needs, and the stabilized speed can reach up to 24,000 bottles per hour. Its stable running speed is high and supports stepless speed regulation, which can be matched with the filling machine, greatly improving the production efficiency of the whole line.

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • GOSUNM

Product Display

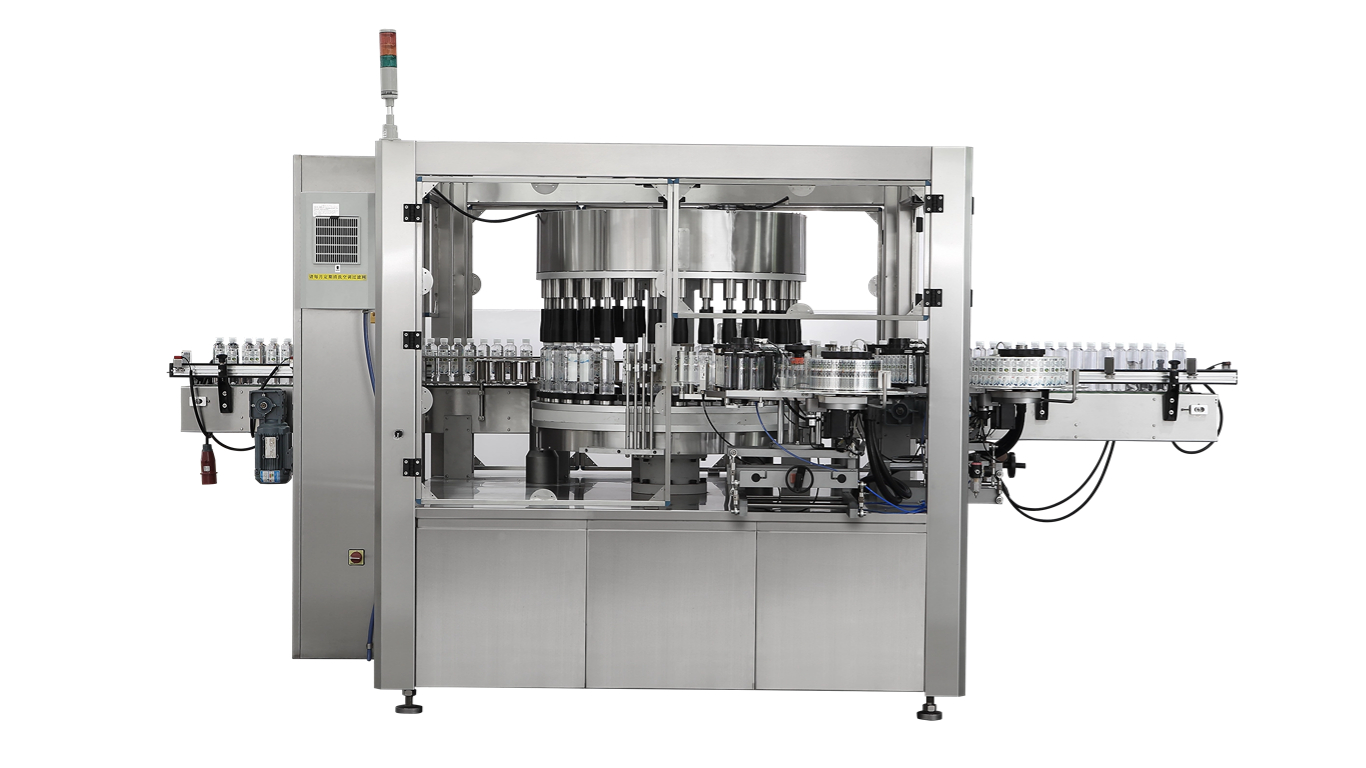

Self-adhesive Rotary Labeling Machine



Rotary labeling machine is a kind of high efficiency automatic labeling equipment, which is driven by high performance servo motor and adopts rotary motion to realize labeling. It can be used to label the outer surface of various round, square and irregular bottles. It can apply 3 labels on the bottle body at the same time, such as the front label and the back label of the bottle body and the bottle neck label. This set of equipment can realize labeling in specified position, and can be equipped with optional ribbon coder and inkjet printer to realize printing of production date and production batch number information on the label. According to different production needs and machine configuration, the stable labeling speed ranges from 10,000 to 60,000 BPH. It has a very wide range of applications in food, pharmaceutical, daily chemical and other industries. The machine has been awarded more than ten national technology patents, advanced and solid mechanical structure can meet the production needs of most enterprises, is a highly efficient, intelligent labeling equipment.


As one of the leading labeling machine manufacturers in China, Gosunm specializes in the design and manufacture of automated packaging production lines. In the field of rotary labeling machine, we have deep technical accumulation and rich customer application experience. With our professional knowledge and technical strength, we can help you realize efficient and accurate labeling operations, and improve product quality and market competitiveness.



Parameters Table

Product Name Rotary position-requested labeling machine
Model GST-R1000D
Labeling speed stable running speed 60000BPH
Labeling accuracy excluding bottle error ±1mm
Maximum label height 120mm (vertical direction)
Minimum bottle diameter 30mm
Maximum bottle diameter 90mm (beyond this value needs to be customized)
Minimum bottle height 120mm
Maximum bottle height 320mm (beyond this value, it needs to be customized)
Applicable paper roll inner diameter φ76mm
Applicable paper roll outer diameter φ400mm
Overall dimensions (LxWxH) L2440xW2080xH2000 (mm)
Working surface height 1150±50 mm
Power consumption 380V 50Hz 10KW


Self-adhesive Rotary Labeling Machine detail



DESIGN FEATURES



  • It supports labeling at any specified position of the container, and the positioning process is carried out in operation with good stability and high efficiency.

  • The label head can realize 8-dimensional space adjustment, and the machine is equipped with a position display function, which can realize precise adjustment without tools.

  • A new type of labeling clutch is adopted, which makes the tension on the label surface more stable and the operation smoother.

  • All parts are CNC machined by the company itself to ensure the quality and precision of the parts.

  • All parts are enclosed design, which can effectively prevent dust. Some parts apply professional waterproof design to ensure that all bearings operate in a dry environment.

  • The key position parts of the equipment adopt anti-corrosion design, which is suitable for various complex production environments.

  • The equipment is equipped with material flow monitoring device, and the running speed can be adjusted automatically.

  • The equipment is designed with a safety guard that automatically stops the machine when opened and has a high level of protection.

  • All electrical controls are manufactured according to the latest CE certification mark.

  • The equipment has only one independent center shaft, which allows automatic lifting and lowering without the need for tightening, and is easy to adjust, eliminating the need to change the position of the bottle press turntable and main shaft during secondary adjustment.

  • The label feed mechanism and the host machine run linearly and synchronously, i.e. the running speed of the host machine is automatically adjusted according to the bottle feeding speed of the front-end production line, and the accuracy of the label feed mechanism is not affected.

  • All stainless steel bottle guide star wheel and housing plate with smooth surface, completely eliminating bottle scratches caused by friction.

  • Simple mechanical structure, easy to clean and maintain.


Fabrication Area


Self-adhesive Rotary Labeling Machine


All the accurate mechanical parts are fabricated in the Mazak CNC center. The fabrication accuracy: 0.006 mm.

Over 90% of the mechanical parts are fabricated in our workshop to ensure part accuracy and machine stability.


Assembly area


Self-adhesive Rotary Labeling Machine


FAQ

Q: Should I choose real-time printing and labeling machine or cache printing and labeling machine?
A: If each label is different, choose real-time printing and labeling machine, if the same batch of labels are the same, choose
cache printing and labeling machine.

Q:What is the maximum labeling speed?
A:It depends on label size and printing content.

Q:How is the data sent sent to the printer?
A:We usually send the print content to the printer using FastReport /Bartender / ZPL.

Q:What types of connections are supported?
A:The printer supports network port, USB, and serial port.

Q: What is the operating voltage of the machine?
A: The standard working voltage is AC 220V, you can add a transformer to adapt to different voltages.

Q: Does the machine need compressed air?
A: The standard version of the machine needs compressed air, support customized pure electric version.

Q:Can the machine be docked to the system?
A: The machine can be docked system, need to reserve docking API.

Q: Does the printer use thermal transfer printing or thermal printing technology?
A: Both thermal transfer printing and thermal printing technology can be supported.

Q: What scenarios is it applicable to?
A: In logistics, medical, warehousing, fresh food and other scenes that require printing and labeling are widely used.
