2D Bulk Flow Singulator

The 2D Bulk Flow Singulator is a high-performance intelligent logistics device that uses advanced visual recognition and deep learning algorithms to automatically locate, separate and sort parcels.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • GS-D100

  • Gosunm

Product Description

The 2D Bulk Flow Singulator is a high-performance intelligent logistics device that uses advanced visual recognition and deep learning algorithms to automatically locate, separate and sort parcels. The core of this system is its ability to handle different types of parcels and operate at an efficiency of up to 10,000 pieces/hour while maintaining a high degree of flexibility and intelligent control. The system is mainly used in express delivery, e-commerce and warehousing industries, which can effectively improve logistics efficiency.


This set of equipment is equipped with ISP intelligent algorithm, which can accurately distinguish the shape, color, location and other information of the parcels, and supports low power, high frame rate preview and high resolution capture. This system is a vision-based control system that controls the prototype speed and direction of parcels by simultaneously controlling a matrix of dozens of narrow belt conveyors, adjusting the distance between parcels, and thus realizing the separation of parcels into individual pieces. It is widely used in courier industry, e-commerce industry, distribution center, warehouse industry, supermarket industry, cosmetics industry, electronic products and other industries.

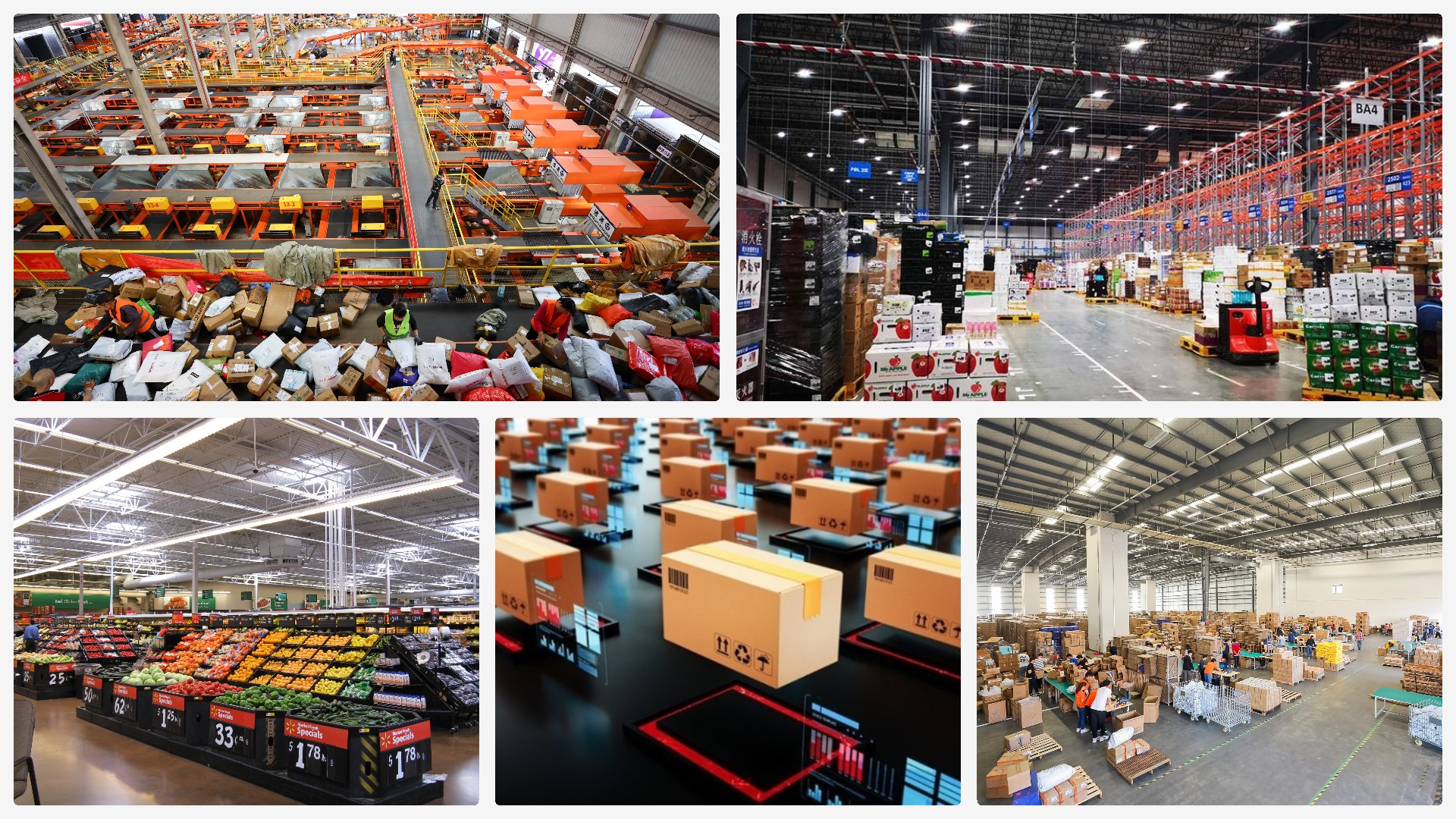

single piece separation equipment


Technical Parameters

Technical ParametersGS-D100
Camera TypeColor availabel
Resolution1600*1200
Pixlel Bit Depth10bits
Acquisition ModeContinuous trigger / soft trigger/ hard trigger
GPIO1 optically isolated input and 1 optically isolated output
Maximum gain8
Exposure time0.016~91
Frame buffer32M Bytes
User-defined data area2K Bytes
Lens mountC interface (default), C or CS interface (optional), also available with M12 lens adapter accessories
Data interfaceRJ45 Gigabit Ethernet, downward compatible with 100M network system
Power<2.5W
Power supplyDC12V(optional POE)
Working temperature0~50°C
Storage temperature-30~60℃
Storage humidity20%~80%(non-condensing)
20%~95%(non-condensing)


Featureds

1. Fast and efficient: Dense and disorderly arrangement of express pieces, the operational efficiency can reach 7000-10000 pieces/hour.

2. accurate positioning: using deep learning parcel positioning technology, combined with 3D contour information, can realize the accurate positioning of multiple sizes and types of express delivery, robustness.

3. scientific scheduling: consider a variety of application scenarios, according to the characteristics of the scene can be adjusted control strategy and separation spacing, and the performance of the separator adaptability, program flexibility: vision program can be flexibly adjusted according to the length of the separator, parcel size upper and lower limits and so on.

4. High-precision identification, the system can accurately identify different items such as envelopes, cartons and soft packages, with an identification accuracy rate of over 99.9%.

5. Modular design and efficient separation, adopting modular design, supporting multi-camera joint recognition, expanding the recognition range through image splicing and other technologies to ensure stable sorting success rate. The highest separation efficiency of large pieces can reach 7200 pieces/hour, and the highest separation efficiency of small pieces can reach 10000 pieces/hour.


2d bulk flow singulator

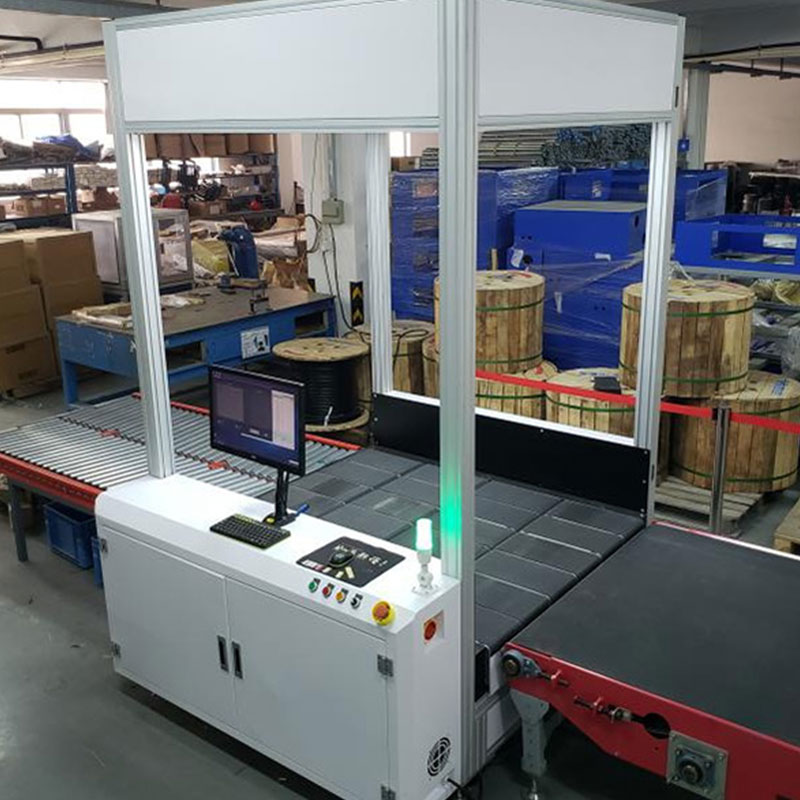

single piece separator for sale
