Automatic Desktop Labeling Machine for Flat Surface like Box / Carton / Card / Bag

Model: GST-113T
Labeling Accuracy: ±1mm
Conveyor Speed: Upto 30 meters/minute
Labeling Speed: 20-120pcs/min (depends on the label size)
Product Size: Length 30-400mm, width 10-200mm

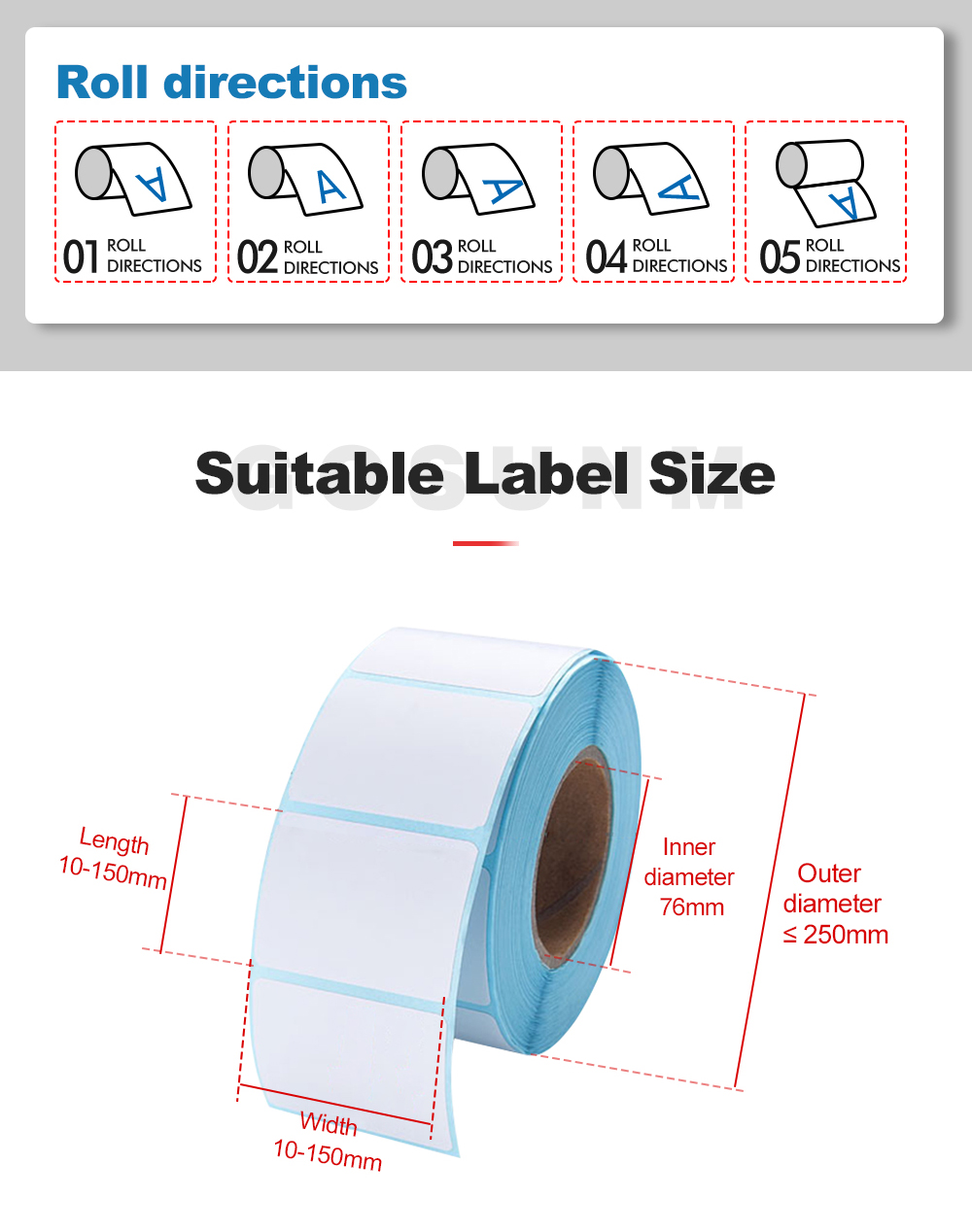

Label Size: (Backing paper) Length 10-150mm, (Backing paper) width 10~150mm
Conveyor's Height: 450+50mm
Label Roll Diameter: Outer Max.250mm, inner 76mm
Power: 0.8kW
Power Supply: AC220V, 50Hz, single phase
Air Supply: No need
Working Environment: 10~40℃
Surrounding Humidity: 15-85%
Machine Dimension: About 1156(L)*600(W)*1150(H)(mm)
Machine Net Weight: 100kg
MOQ: 1 Set
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • GST-113T

Video


Gosunm GST-113T flat labeling machine in a customer's warehouse in Lithuania.

Real customer reviews

Thank you so much!Yes,the machine has been received yesterday.Very happy!

We have started working with it,it seems everything fine I will keep you updated,

In a future we might need bit bigger machine.Please find below attached testing.


Product Features

GST-113TY_详情 (1)

Product   Name Desktop Flat   Labeling Machine
Model GST-113T
Labeling   Accuracy ±1mm
Conveyor Speed Upto 30 meters/minute
Labeling Speed 20-120pcs/min   (depends on the label size)
Product Size Length 30-400mm,   width 10-200mm
Label   Size(Backing paper) Length 10-150mm,   (Backing paper) width 10~150mm
Conveyor's   Height 450+50mm
Label Roll   Diameter Outer Max.250mm,   inner 76mm
Power 0.8kW
Power Supply AC220V, 50Hz, single   phase
Air Supply No need
Working   Environment 10~40℃
Surrounding   Humidity 15-85%
Machine   Dimension About   1156(L)*600(W)*1150(H)(mm)
Machine Net   Weight 100kg
Package Crate   Dimension About   1310(L)*810(W)*1360(H)(mm)
Machine Gross   Weight 195kg

GST-113T_2022_03GST-113T_2022_04GST-113T_2022_05GST-113T_2022_06GST-113T_2022_07GST-113T_2022_08

Product Description

Flat Surface Labeling Solution

Gosunm flat labeling machine series takes into account the needs of customers at different stages and introduces four series of products: desktop flat labeling machine, vertical flat labeling machine, high-speed flat labeling machine, and flat printing and labeling machine. For different scenarios and different products, we will recommend the most suitable labeling machine to our customers.

GST-113T is a flat labeling machine designed for warehouse, small size, light weight and easy to carry. It is suitable for labeling of different sizes, and the maximum range solves the problem of labeling many different products.


Product Feature

The GST-113T features a minimalist design that reduces the size and weight of the machine as much as possible while ensuring compatibility with a wide range of label sizes and stable operation. This flat labeling machine is applicable to a wide range of products and is easy to install and adjust, and can be quickly learned by novices after simple training.


Aftersales Service

1.    One-year machine warranty, lifetime maintenance service.

2.    Experienced engineers provide fast and professional 24 hours online guidance.

3.    Provide complete teaching videos and instruction manual, easy to operate and maintain. The video of the operation is stored on a USB shipped with the machine
