Home / Labeling Machine / Bottle Labeler / Tabletop Round Bottle Labeling Machine Automatic

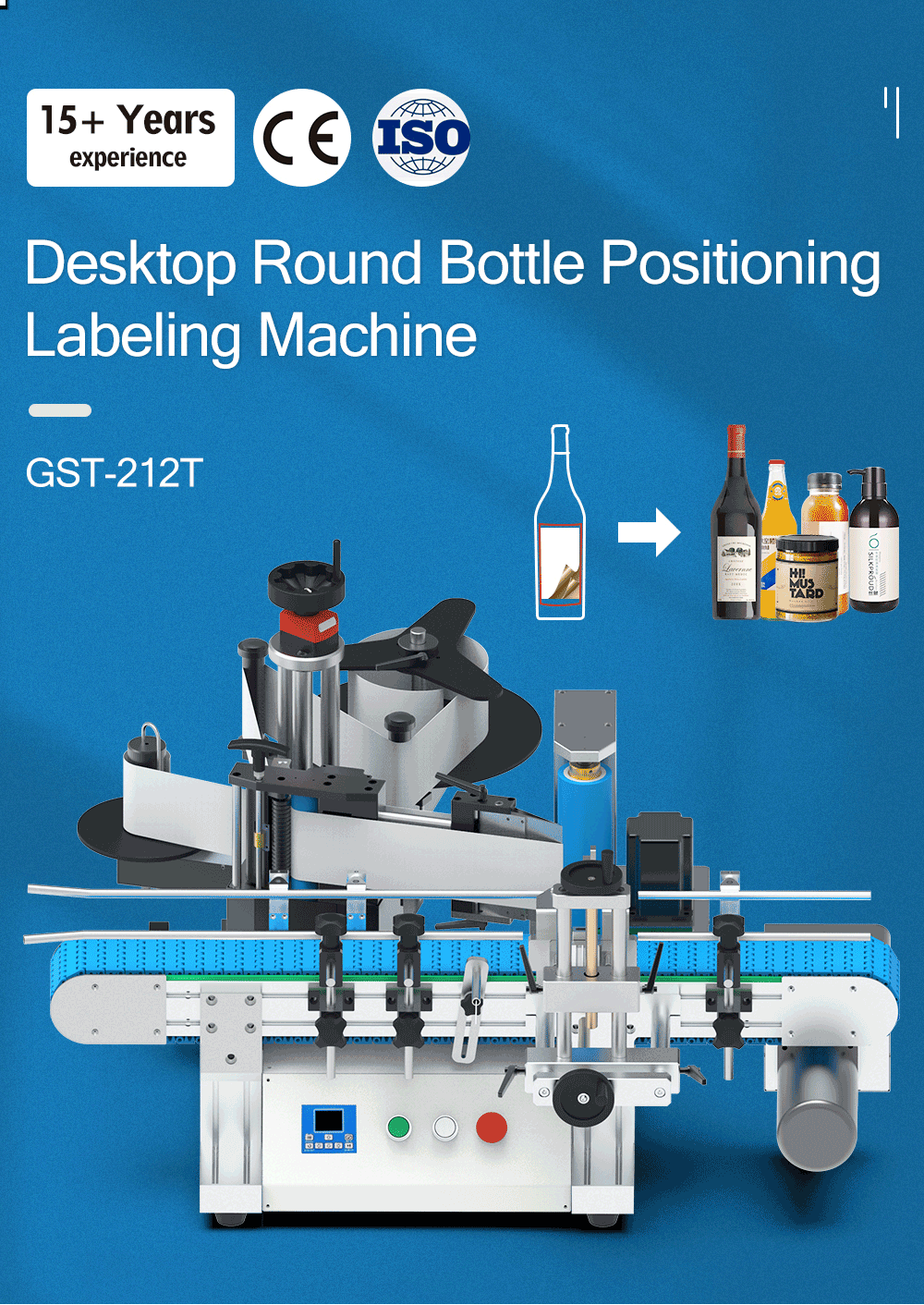

Tabletop Round Bottle Labeling Machine Automatic

Model: GST-212T
Labeling Accuracy: ±1mm
Labeling Speed: 20-50pcs/min (depends on the label size)
Product Size Diameter: φ20-100mm, height 50-200mm
Label Size(Backing paper): L 10~150mm, W 10~100mm
Label Roll Diameter: Outer Max.280mm, inner 76mm
Power: 0.8kW
Power Supply: AC220V, 50Hz, single phase
Air Supply: 5kL/min
Working Environment: 10~40℃
Surrounding Humidity: 15-85%
Machine Dimension: 1150*1150*800mm
Machine Net Weight: 80kg
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • GST-212T

  • GOSUNM

Video


Gosunm focus on labeling machine for 15 years. Desktop round bottle labeling machine is small, sophisticated and suitable for most small business plans for round bottle labeling

Product Display

桌面圆瓶贴标机详情2(5)_01

GST-212T_详情页-(2)_02

Product   Name Deskto Bottle   Labeling Machine (Positioning)
Model GST-212T
Labeling   Accuracy ±1mm
Labeling Speed 20-50pcs/min (depends   on the label size)
Product Size Diameter φ20-100mm,   height 50-200mm
Label   Size(Backing paper) L 10~150mm, W   10~100mm
Label Roll   Diameter Outer Max.280mm,   inner 76mm
Power 0.8kW
Power Supply AC220V, 50Hz, single   phase
Air Supply 5kL/min
Working   Environment 10~40℃
Surrounding   Humidity 15-85%
Machine   Dimension 1150*1150*800mm
Machine Net   Weight 80kg

GST-212T_详情页-(3)_02桌面圆瓶贴标机详情2(5)_04桌面圆瓶贴标机详情2(5)_05123456桌面圆瓶贴标机详情2(5)_07

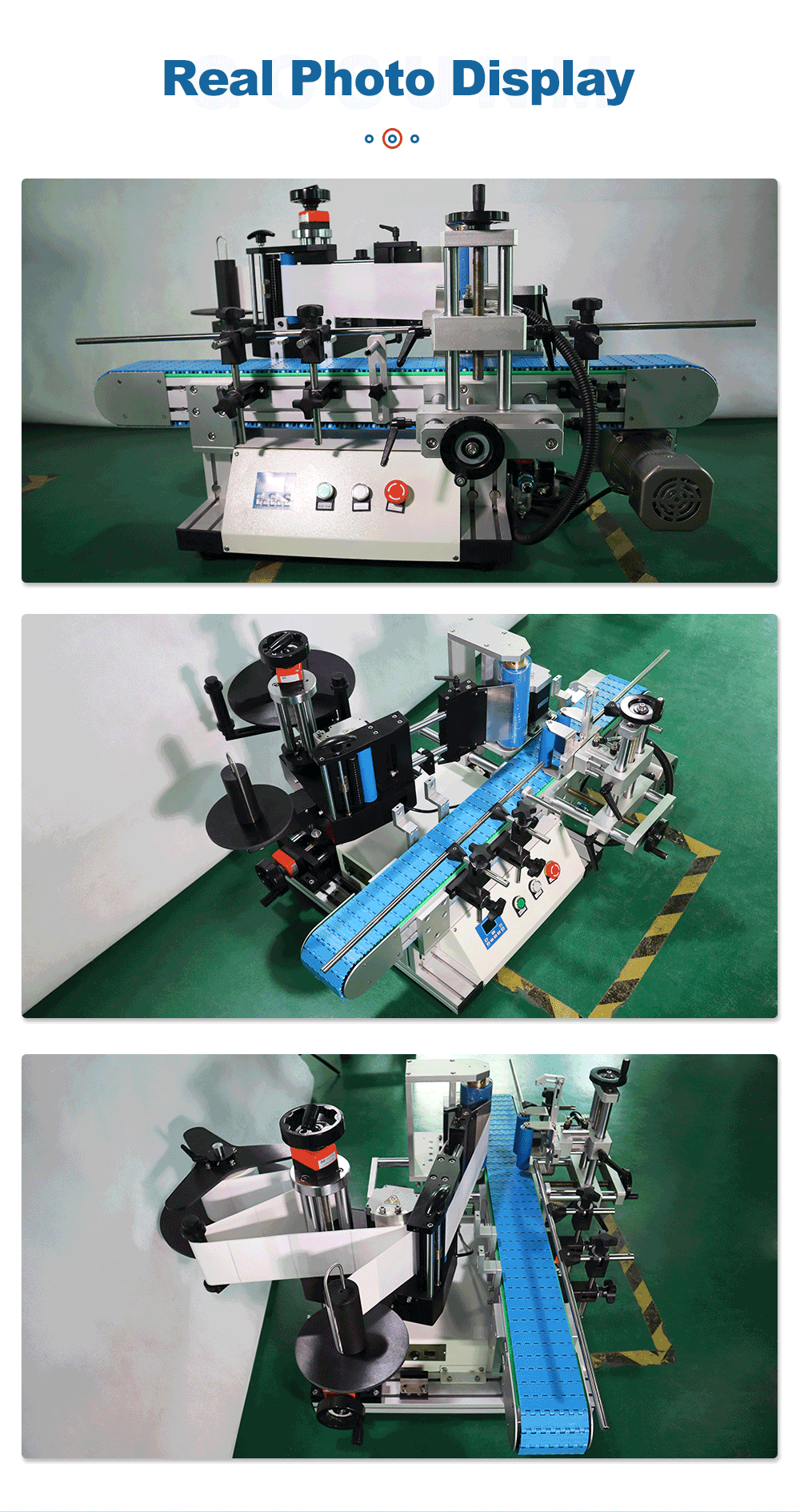

Product Display

Round bottle labeling solution

Gosunm Intelligent has developed a variety of standard round bottle labeling machines in response to market demand, and has also completed dozens of customized designs and manufacturing of non-standard products according to customers' actual needs.

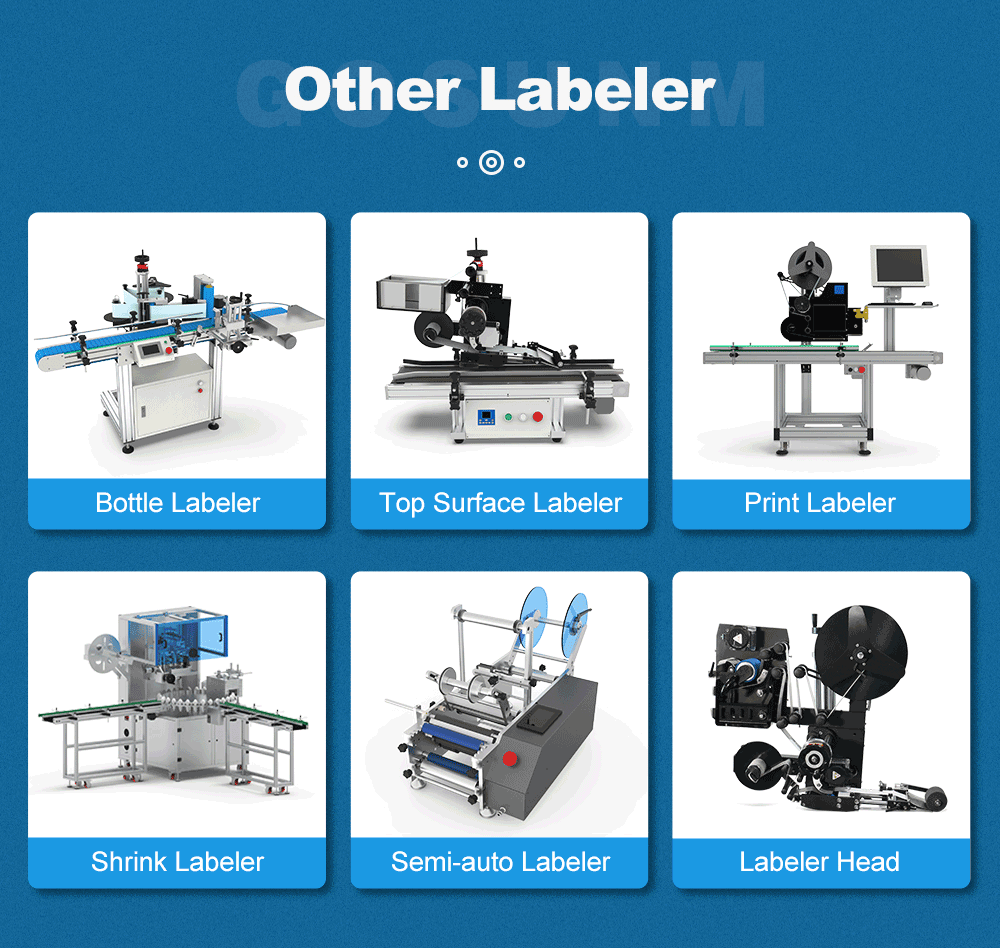

The standard products are mainly

Desktop round bottle labeling machine

Vertical round bottle labeling machine

Horizontal round bottle labeling machine

Semi-automatic round bottle labeling machine

Double side labeling machine

Sleeve labeling machine


GST-212T is specially prepared for small business plan, it is very small, light and can be carried by two people.GST-212T is easy to install and adjust, and the product is suitable for labeling different sizes of round bottles with wide range of adaptability.

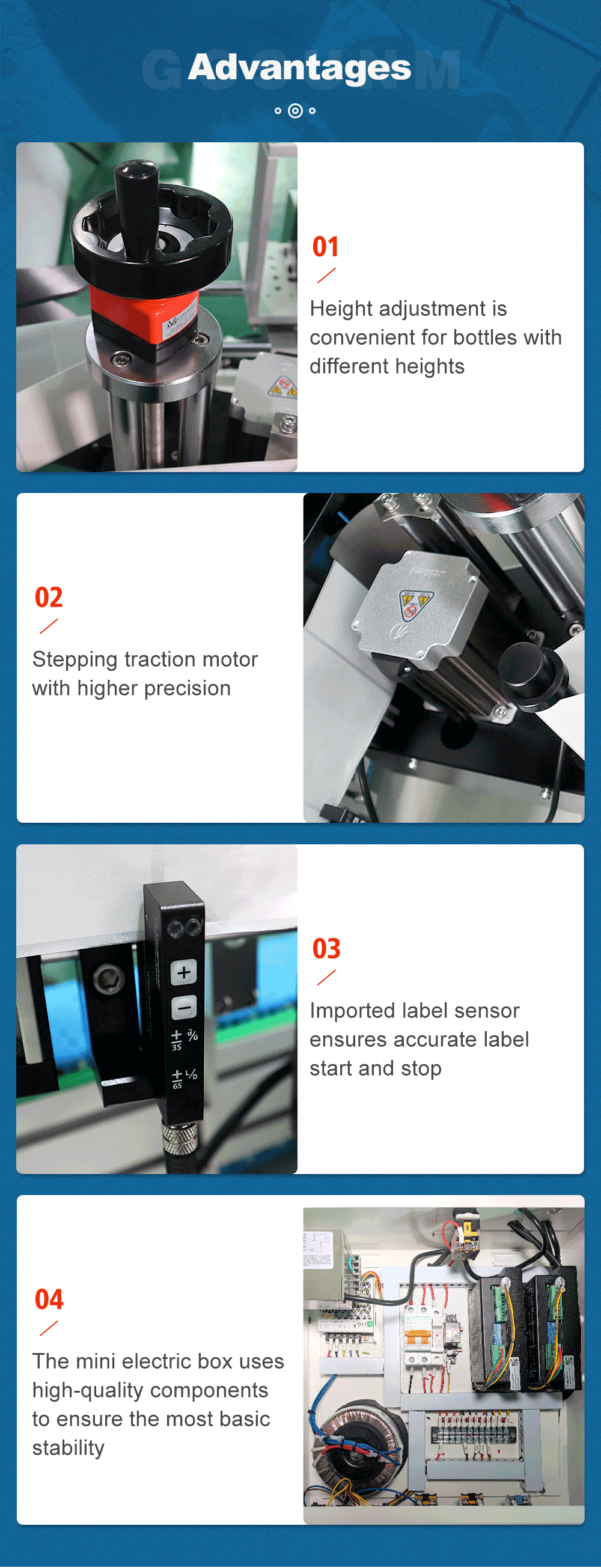

Product Feature

Adopting high quality stepper motor and label measuring sensor, the machine is more stable.

Object measuring electric eye can be added, compatible with positioning labeling.

The machine body uses high quality aluminum alloy, stable structure and long service life.

Simple and easy to understand touch panel, simple training can be used.


Company Service

1.    One-year machine warranty, lifetime maintenance service.

2.    Experienced engineers provide fast and professional 24 hours online guidance.

3.    Provide complete teaching videos and instruction manual, easy to operate and maintain. The video of the operation is stored on a USB shipped with the machine
