Home   /   Product

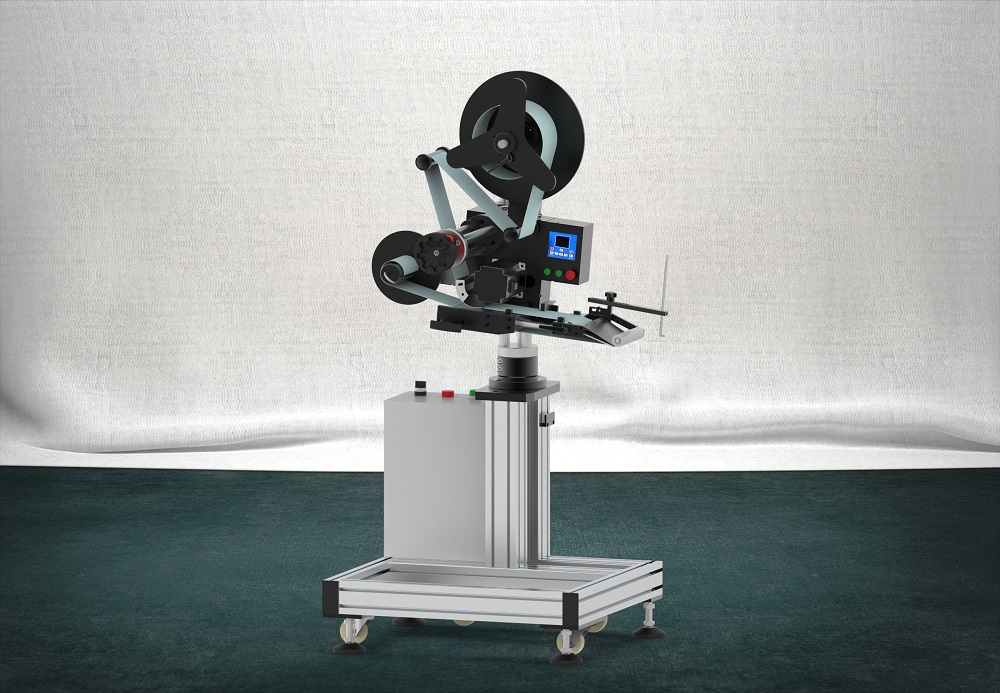

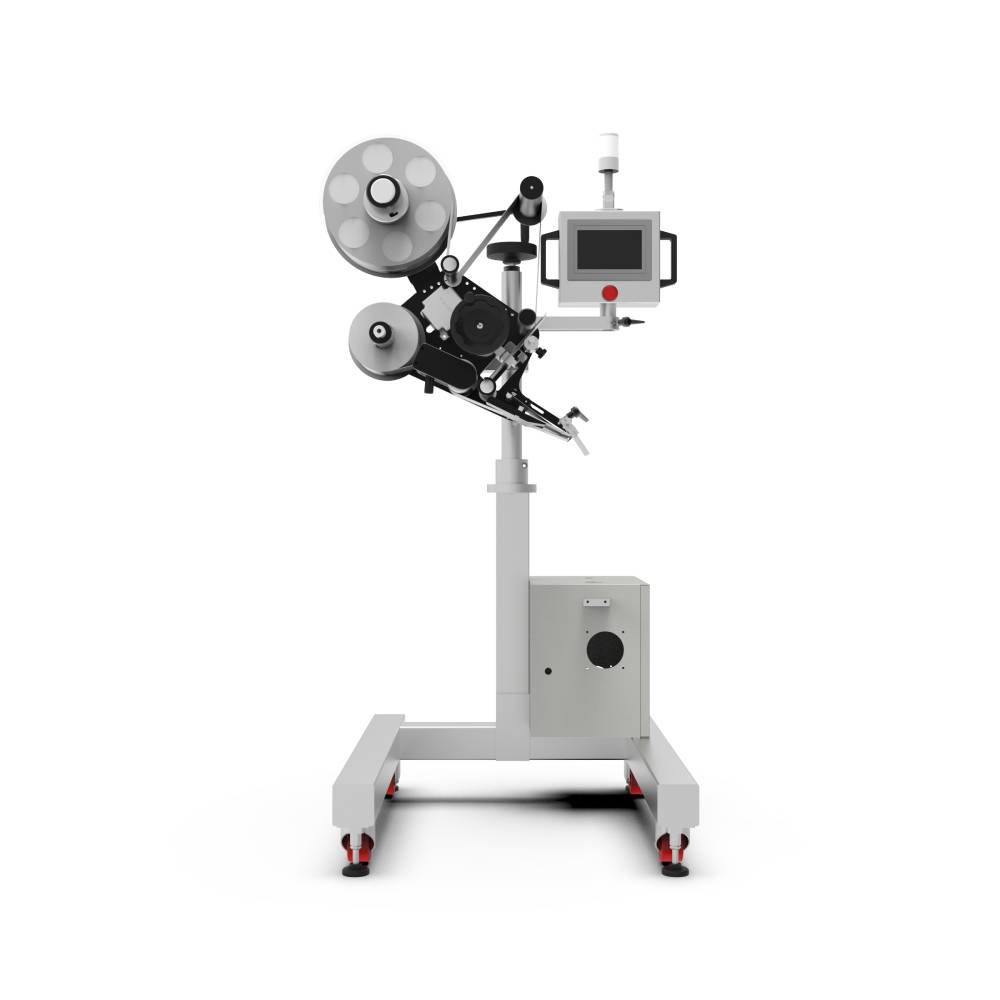

Top Surface Labeling Applicator Head

Model GST-511
Voltage AC220V, 50Hz
Dimension About 820 (L)*870 (W)*1550 (H) (mm)
Height of assembly line Between 600-900mm
Speed 10-200pcs/min (according to product and label size)

Available Label size (Including bottom paper) width: Max.170mm
Length: 5mm~500mm
Diameter Outer Diameter 300mm; Inner diameter: 76mm
Working Environment 10~40℃
Environmental temperature 15-85%
Labeling accuracy ±1mm
Machine net weight 50kg

Video

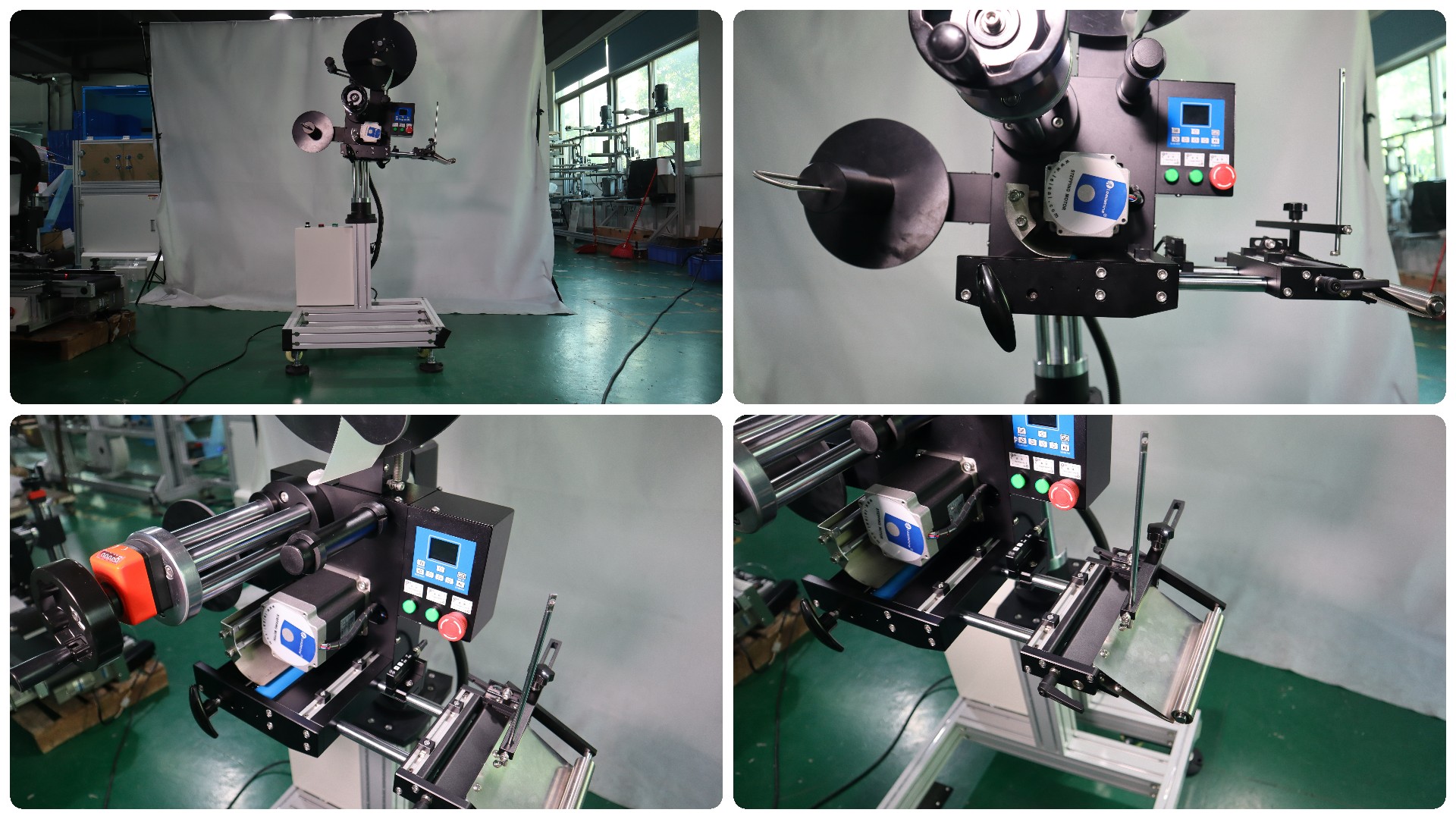

Product Picture


GST-511

Product Description

Top Surface Labeling Applicator Head

Equipment Features

1. Machine can be customized according to the height of the assembly line, and the size of the label

2. Different from traditional power control, After the speed of the labeling process is changed, the labeling position is still in the original position, which makes the labeling debugging very simple;

3. Applying Japan brand PLC Germany brand label sensor, the equipment is more stable during operation

4. Full stainless steel made, more beautiful appearance, smaller occupation, easier to operation

5. The wrapping label adopts a new design, simple operation, and the operation of the traction mechanism is more user-friendly


Model

GST-511

Voltage

AC220V, 50Hz

Dimension

About 820 (L)*870 (W)*1550 (H) (mm)

Height of assembly line

Between 600-900mm

Speed

10-200pcs/min   (according to product and label size)

Available Label   size

(Including bottom paper) width:   Max.170mm

Length: 5mm~500mm

Diameter

Outer Diameter 300mm; Inner diameter:   76mm

Working Environment

10~40℃

Environmental temperature

15-85%

Labeling accuracy

±1mm

Machine net weight

50kg


Aftersales Service

1.    One-year machine warranty, lifetime maintenance service.

2.    Experienced engineers provide fast and professional 24 hours online guidance.

3.    Provide complete teaching videos and instruction manual, easy to operate and maintain. The video of the operation is stored on a USB shipped with the machine
