200m/min Labeling Machine For Flat surface

Weight: about 105kg
Power supply: 220V, 50Hz
conveying speed: about 120m/min
Labeling speed: 120m/min
Labeling accuracy: ±1 mm
Applicable label size: lengh 10~150mm; width 10~150mm
Applicable product size: lengh 30~270mm width 30~300mm
Maximum label requirement:roll label, outside roll 280mm,inner dia 76mm
  • GST-113C




high speed flat labeling machine

Product Description

Standard equipment configuration

a. 1 set automatic flat labeling machine

List of main components

1GSL-captain-100 high speed automatic flat labeling machine1set
2Adjustable rolling label device2set
3conveying mechanism1set
4Touch screen)1set
5Aluminium alloy electric box1set
6specification and common tools1set

Self-adhesive label parameters

Roll label in the labeling machine work the entire process, including label delivery, positioning, out of the label, paste and backing paper re-roll, to successfully complete the labeling process, the overall label has the following requirements:

Label spacing: 3-4mm ± 0.2mm, the upper and lower edge of the label and the bottom of the backing paper spacing: 2mm

Surface material: basic grammage 78 g/m2 plus or minus 10%,Thickness: 0.064mm plus or minus 10%

Backing paper: Basic weight 61g/m2 plus or minus 10% Thickness: 0.055mm plus or minus 10%

Consistent release force, uniform thickness, a certain tensile strength, translucent Grassian base paper is generally between 60-80 g, fiber density tightness flatness to be good, not easy to break when labeling, the overall translucency to be consistent, the sensor correctly identify the location of the label.

Tensile force: machine direction: 16kg/25mm    Horizontal direction: 7kg/25mm

Tear resistance: machine direction: 25g / sheet    Crosswise: 31g/sheet

Before labeling to eliminate the static electricity in the roll label, so that the label is firm out of the label, from the backing paper, because static electricity will cause labeling when not out of the label or the labeling inaccuracy phenomenon, die-cutting to avoid cutting through the backing paper and not out of the label and torn backing paper phenomenon.

Product Features

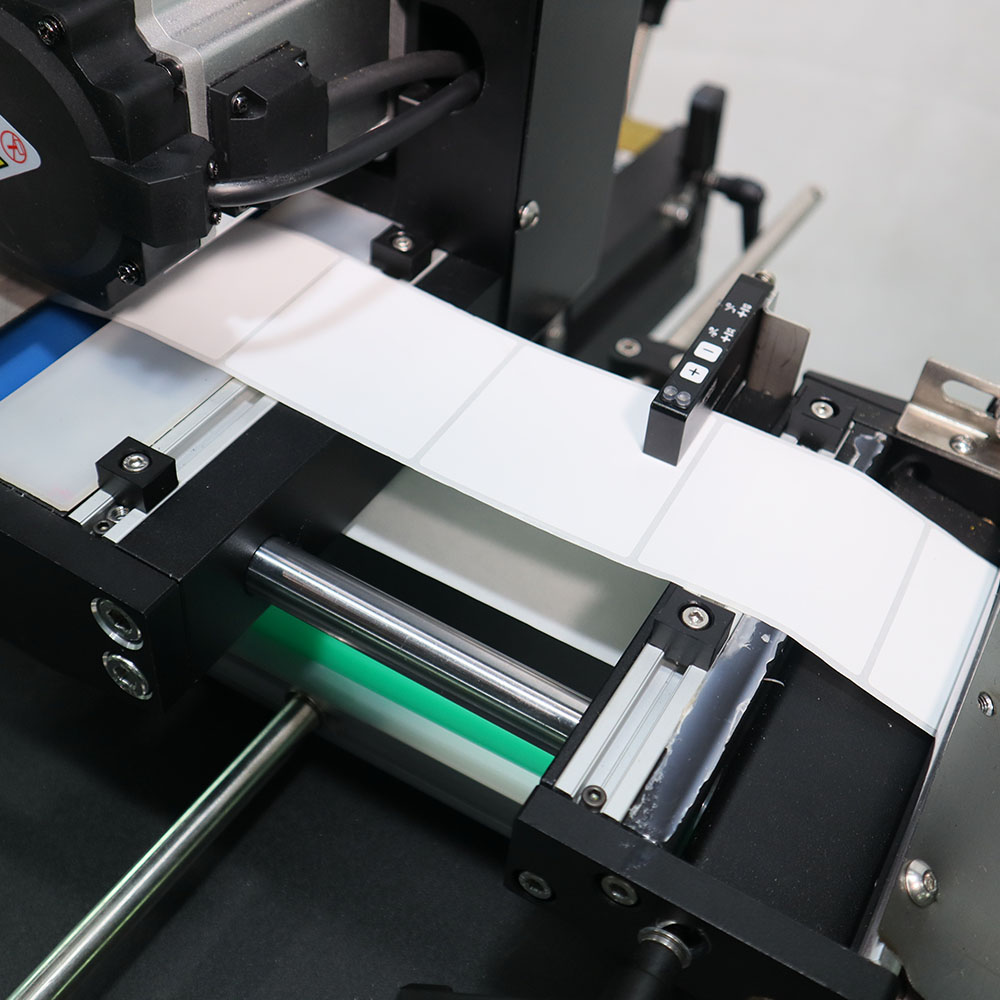

Machine detail

high speed flat labeling machine

Product Range Flexibility of Our Labeling Machines


Aftersales Service


1.    One-year machine warranty, lifetime maintenance service.

2.    Experienced engineers provide fast and professional 24 hours online guidance.

3.    Provide complete teaching videos and instruction manual, easy to operate and maintain. The video of the operation is stored on a USB shipped with the machine
