3ply Mask Machine - Mask Detection & Packing Production Line

Specializes In Disposable N95, KF94, 3-ply Surgical/Medical Masks.

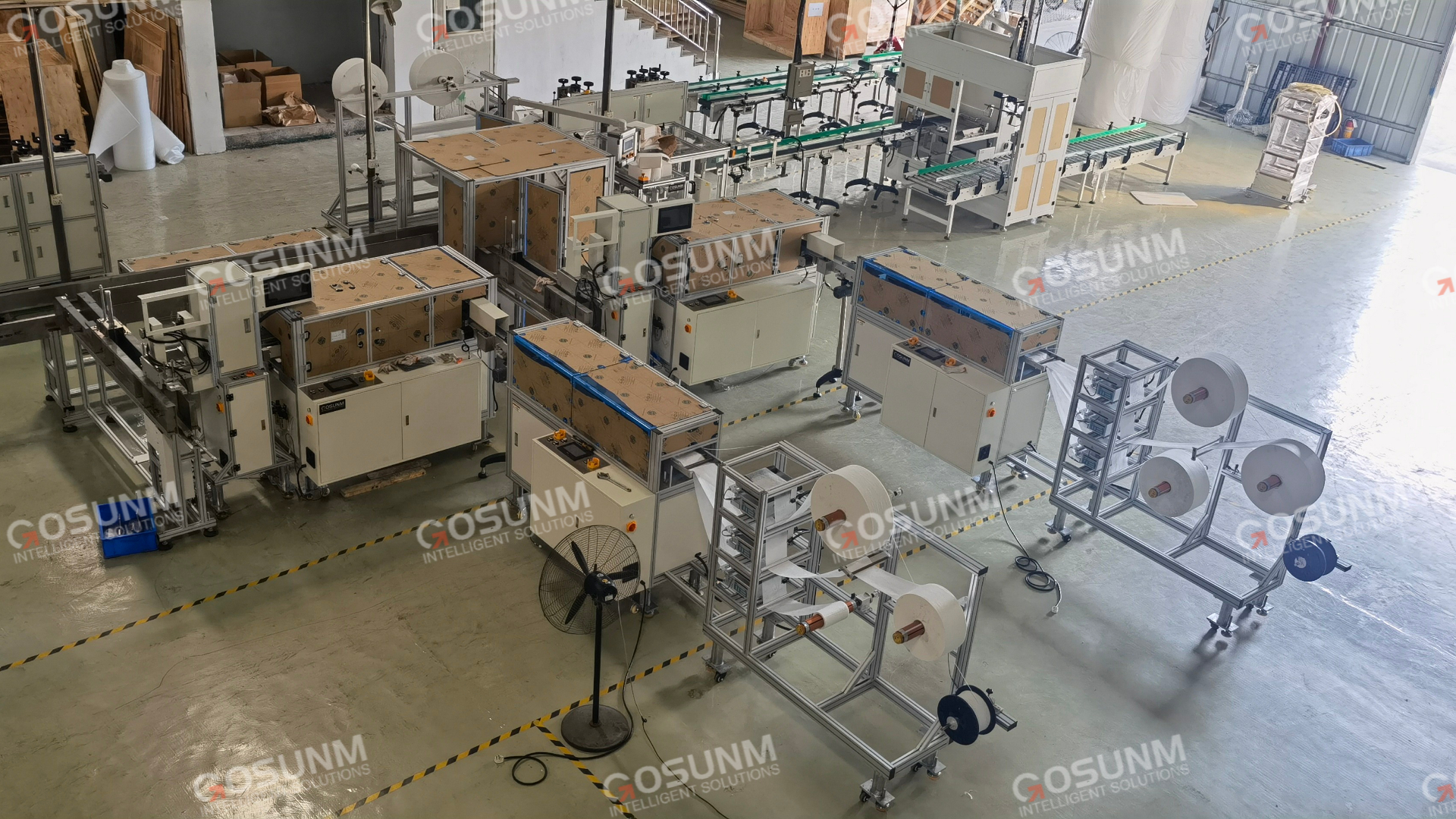

Product Pictures


整线实拍 (2)



Product Description

Standard equipment configuration

No.Equipment nameQtyUnit
1Automatic mask machine (including 6 tension mechanism; standard)1Set
2Pillow packing machine (standard)1Set
36 correction mechanism (optional)1Pcs

conveying mechanism (optional)

5Logo pad printer1Pcs
6Nose foam sticking mechanism1Pcs
7Waste recycling device1Pcs
8CCD inspection machine1Pcs
9UV sterilization machine1Pcs

Equipment technical parameters

1. Equipment efficiency: 80-100pcs/min;

2. Voltage: 380V/220V,50/60HZ;

3. Equipment size: (L)14900mm*(W)1500mm*(H)1680mm

4. Equipment wight: About 2800kg

5. Pass rate: more than 95%

This 3ply face mask making machine uses ultrasounic to produce finished masks automatically. Including special optional function (Anti fog film welding and sponge nose wire welding, pringting) nose wire feeding, earloop welding, folding, forming and cutting, waste collected, the mask produce can be finished just in one machine.

From materials to packed mask, all PLC control. Effectively reduce man-made pollution. It only requires one worker to operate.

Gosunm is able to offer all kinds of mask production line, can be equipped with inspection machine, packaging and boxing machine , and can also provide customization service such as add logo on the mask, install protect panel accordingly to meet the markets needs.
