Home / Labeling Machine / Bottle Labeler / Automatic Vertical Round Bottle Labeling Machine

Automatic Vertical Round Bottle Labeling Machine

Model: GST-212
Labeling Accuracy: ±1mm
Labeling Speed: 10-30pcs/min (depends on the label size)
Product Size: Diameter φ20-150mm, height 10-300mm
Label Size: (Backing paper) Length 20-450mm, (backing paper) width10-100mm
Conveyor's Height: 800±50mm
Label Roll Diameter: Outer Max.300mm, inner 76mm
Power: 1kW
Power Supply: AC220V, 50Hz, single phase
Air Supply: 0.5-0.8MPa, 10L/min
Working Environment: 10~40℃
Surrounding Humidity: 15-85%
Machine Dimension: 1800(L)*1100(W)*1300(H)(mm)
Machine Net Weight: 180kg
MOQ: 1 Set
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • GST-212



Gosunm has 15 years of experience in developing and manufacturing self-adhesive labeling machines, and is one of the best labeling machine manufacturers in China.

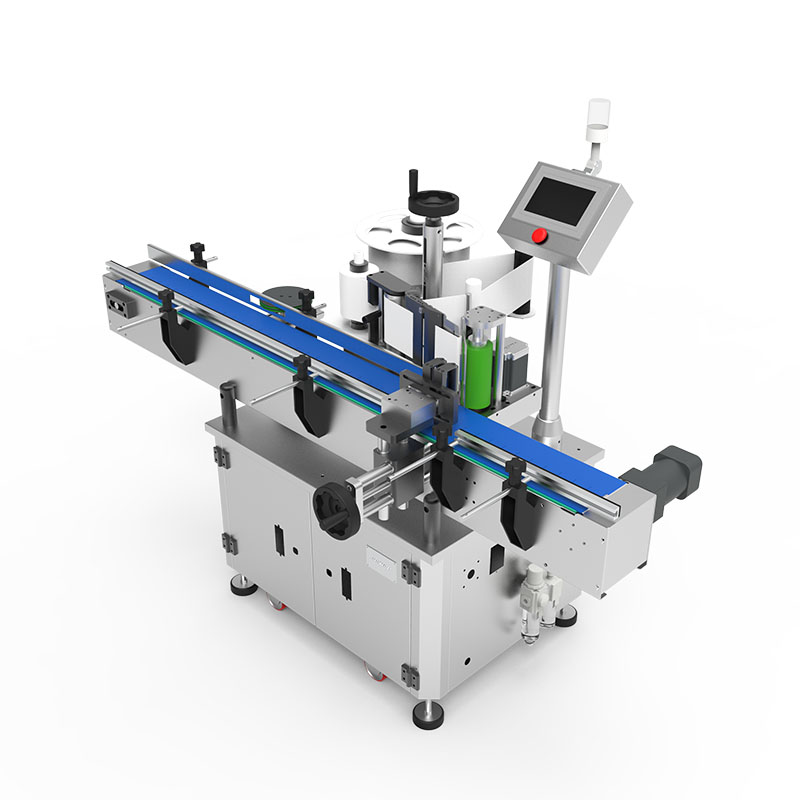

Product Picture


Product   Name Automatic Round   Bottle Labeling Machine (Pneumatic Push)
Model GST-212
Labeling   Accuracy ±1mm
Labeling Speed 10-45pcs/min (depends   on the label size)
Product Size Diameter φ20-150mm,   height 10-300mm
Label   Size(Backing paper) Length 15-450mm,   (backing paper) width10-150mm
Conveyor's   Height 800±50mm
Label Roll   Diameter Outer Max.250mm,   inner 76mm
Power 1kW
Power Supply AC220V, 50Hz, single   phase
Air Supply 0.5-0.8MPa, 10L/min
Working   Environment 10~40℃
Surrounding   Humidity 15-85%
Machine   Dimension 1800(L)*1100(W)*1300(H)(mm)
Machine Net   Weight 180kg
Package Crate   Dimension 1850(L)*1150(W)*1400(H)(mm)
Machine Gross   Weight 230kg


Product Description

Round Bottle Labeling Solution

Gousnm has 15 years of experience in labeling machine manufacturing and has developed standardized solutions for common bottles, solving the labeling of different size round bottle containers through modular labeling heads, conveyor belts and adjustment devices.Gosunm can also complete customization services for non-standard products according to customer requirements. It is a manufacturer of labeling machines with R&D and creativity.

Production Line

Application to different sizes of bottles

Suitable for conical bottles.

Can be used alone or connected to a production line.

Many different functional accessories for you to choose from.

In addition to offering standard products, we also support customized products.

Aftersales Service

1.    One-year machine warranty, lifetime maintenance service.

2.    Experienced engineers provide fast and professional 24 hours online guidance.

3.    Provide complete teaching videos and instruction manual, easy to operate and maintain. The video of the operation is stored on a USB shipped with the machine
