Carton Unpacker

Used for carton unpacking and back cover.

Technical Specifications
Material: Carbon Steel
Power: 220V
Unpacking capacity: 10-12carton/min
Carton Size: L250-450*W150-400*H100-400mm
Tape Size: 48,60,72 mm (alternative use)
Temporary carton storage quantity: 100pcs (1000mm)
Machine weight: 450kg
Machine size: L2000*W1900*H1450mm

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • GSBZJ-009

Product Description

  • Auto-complete box unpacking, forming, bending and folding under the bottom , at real time to complete the next part taped, folded cardboard box board will automatically open, the box at the bottom is by a certain program to fold, and sealed with tape and delivered to the packing machine dedicated device. Automatic box unpacking machine is a high-volume automatic carton box automatically unpacking, converted under cover, self-sealing tape under the bottom of the line equipment.

  • The machine adopts PLC + display to control, greatly facilitate the operation and management, reduction of production personnel and labor intensity, is essential equipment for automated mass production. Easy to operate, reduce production costs.

  • Folding grab up model: automatic correction straight angle, push the boxes accurately
    Compact design: easy to install

  • For box device: Size cartons, accurate

  • Adhesive tape at the bottom: clean, accurate touch to put the boxes

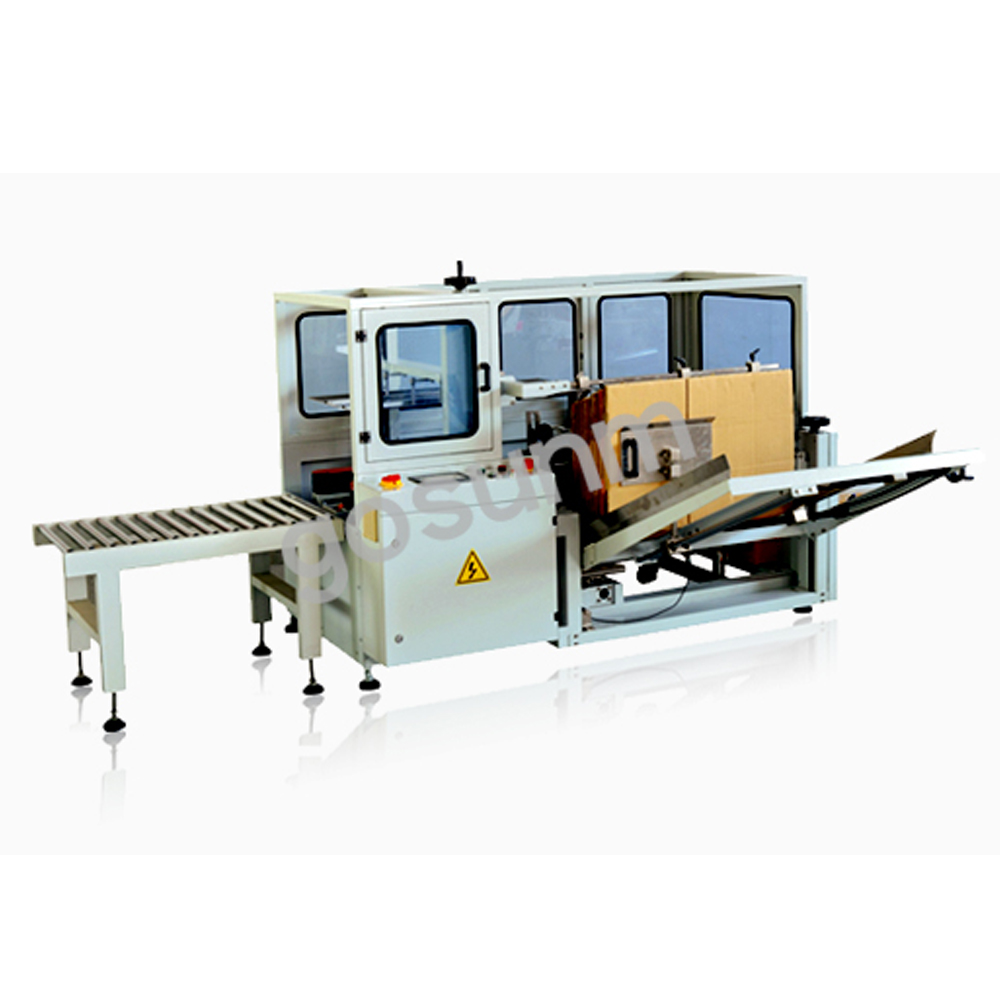

Vertical type carton forming machine

Product Feature

Machine detail


Aftersales Service

1.    One-year machine warranty, lifetime maintenance service.

2.    Experienced engineers provide fast and professional 24 hours online guidance.

3.    Provide complete teaching videos and instruction manual, easy to operate and maintain. The video of the operation is stored on a USB shipped with the machine.
