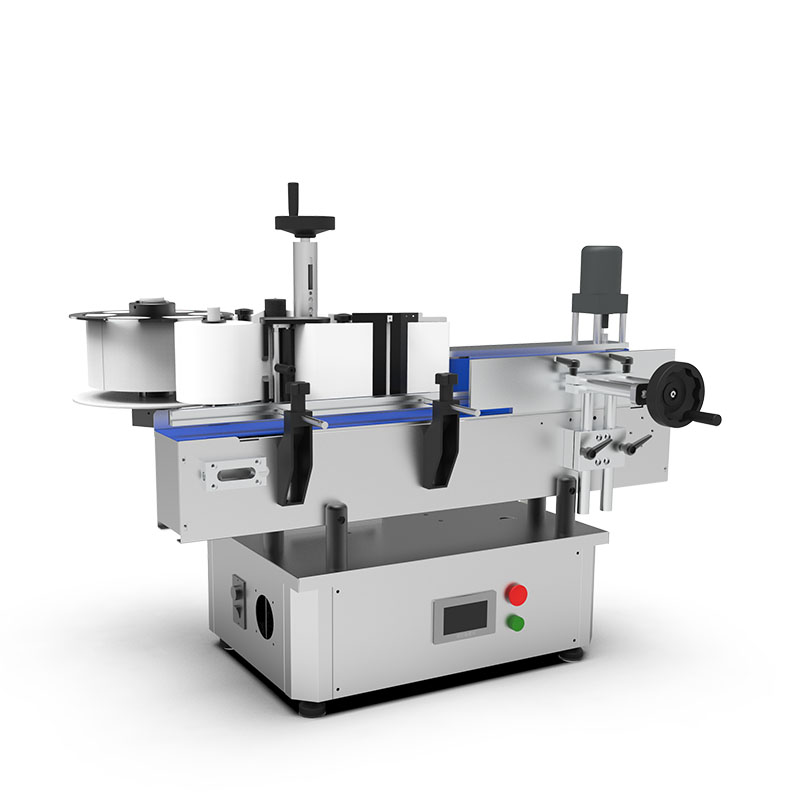

Portable Rolling Type Round Bottle Labeling Machine

Model GST-211T Desktop Round Bottle Labeling Machine (Rolling belt)
Labeling accuracy ±1mm
Labeling speed 10-150pcs/min (depends on the label size)
Product size Diameter φ10-100mm, height 10-300mm
Label size Length 15-310mm, (backing paper) width 10-100mm
Conveyor’s height 500±50mm
Label roll diameter Outer Max.250mm, inner 76mm
Surrounding temperature 10~40℃
Surrounding humidity 15-85%
Power 1.5kW
Power Supply AC220V, 50Hz, single phase
Air supply No need
Machine dimension 1100(L)*1050(W)*850(H)(mm)
Machine weight 100kg
Crate dimension 1210(L)*790(W)*1150(H)(mm)
Gross weight 197kg
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • GST-211T

  • GOSUNM

Banner

GST-211TY

Product Information

1234

Product   Name Desktop Round   Bottle Labeling Machine (Rolling belt)
Model GST-211T
Labeling   Accuracy ±1mm
Labeling Speed 10-150pcs/min   (depends on the label size)
Product Size Diameter φ10-100mm,   height 10-300mm
Label   Size(Backing paper) Length 15-310mm,   (backing paper) width 10-100mm
Conveyor's   Height 500±50mm
Label Roll   Diameter Outer Max.250mm,   inner 76mm
Power 1.5kW
Power Supply AC220V, 50Hz, single   phase
Air Supply No need
Working   Environment 10~40℃
Surrounding   Humidity 15-85%
Machine   Dimension 1100(L)*1050(W)*850(H)(mm)
Machine Net   Weight 100kg
Package Crate   Dimension 1210(L)*790(W)*1150(H)(mm)
Machine Gross   Weight 197kg

Gold quality testing, ISO quality management system

Optional circumferential positioning detection device to achieve circumferential positioning labeling.

Optional ribbon coder and inkjet printer can be used to print the production batch number and other information at the same time, reducing the packaging process and improving production efficiency. Widely used in food, cosmetic, chemical and pharmaceutical industries.

All standard equipment is CE certified.

Free design by senior experts and professional team

Designing the right automation equipment according to the customer's budget to reduce costs and speed up the process.


We follow the international ISO quality management system.

We use ERP, PDM, CRM and other scientific and standard management systems to achieve information management and traceability, and the equipment is tested 24-48 hours before leaving the factory.

Product Display

GST-211TY_细节图 (34)GST-211TY_细节图 (38)GST-211TY_细节图 (35)GST-211TY_细节图 (15)
