Round / Square Bottle Double Sides Labeling Machine

Model: GS-T712
Labeling accuracy: ±1mm
Labeling speed: 10-200pcs/min (depends on the label size)
Product size: Length 20-500mm, width 20-110mm, height 30-350mm
Label size: Length 25-200mm, (backing paper) width 20-170mm
Label roll diameter: Outer Max.300mm, inner 76mm
Conveyor height: 700mm
Surrounding temperature: 10~40℃
Surrounding humidity: 15-85%
Power: 2kW
Power Supply: AC220V, 50Hz, single phase
Air supply: No need
Machine dimension: 3000(L)*1550(W)*1450(H)(mm)
Machine weight: 250kg
Packing Crate dimension: 3050(L)*1600(W)*1550(H)(mm)
Gross weight: 390kg
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • GST-712

  • GOSUNM

Video


Gousnm is the top labeling machine supplier in China, and double side labeling machine is our key product with rich application cases.

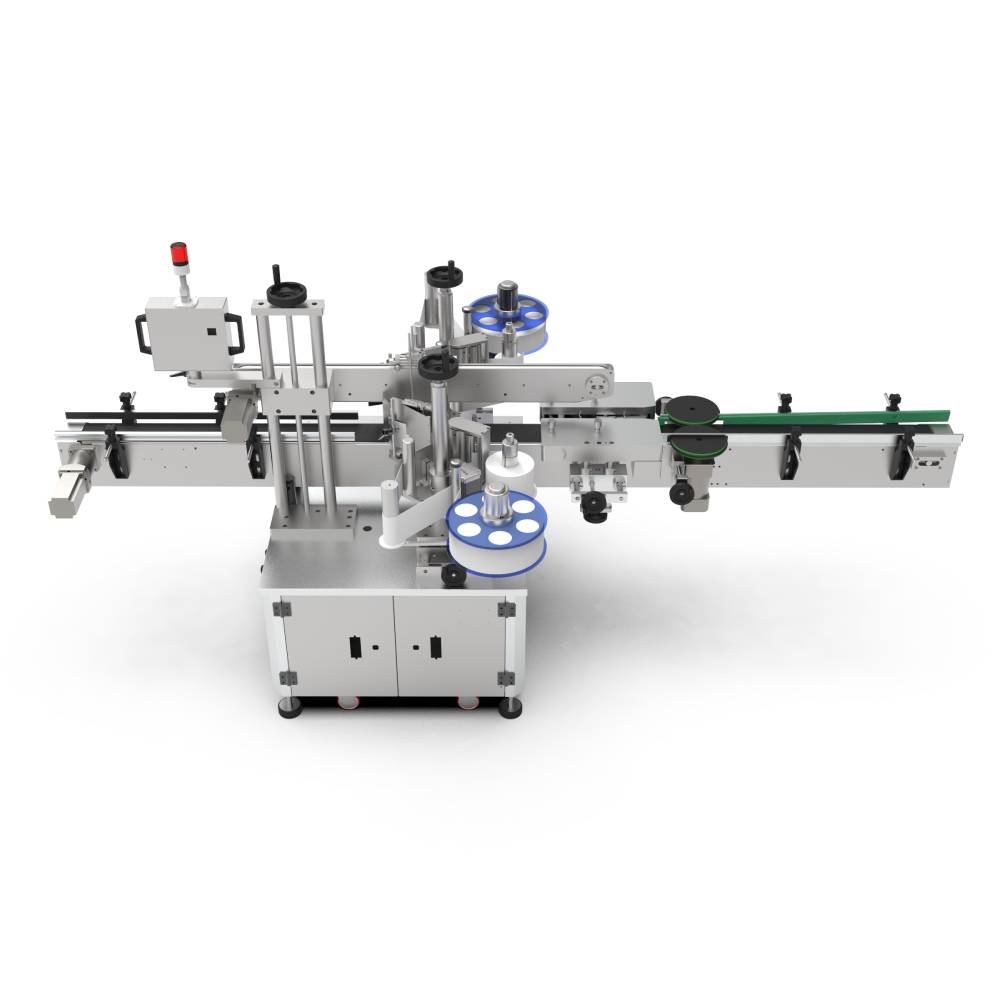

Product Display

double side labeling machineproduct application from labeling machine

Product   Name Double-side   Labeling Machine
Model GST-712
Labeling   accuracy ±1mm
Labeling speed 10-200pcs/min   (depends on the label size)
Product size Length 20-500mm,   width 20-110mm, height 30-350mm
Label size Length 15-300mm,   (backing paper) width 10-150mm
Label roll   diameter Outer Max.250mm,   inner 76mm
Conveyor   height 820mm ± 50mm
Surrounding   temperature 10~40℃
Surrounding   humidity 15-85%
Power 2kW
Power Supply AC220V, 50Hz, single   phase
Air supply No need
Machine   dimension 3000(L)*1550(W)*1450(H)(mm)
Machine weight 250kg
Packing Crate   dimension 3050(L)*1600(W)*1550(H)(mm)
Gross weight 390kg

labeling machine production applicationadvantages of labeling machinelabeling machine from Gosunm

Product Features

Double side labeling solution

GST-712 is a double-sided labeling machine customized to meet customer product requirements. With simple adjustment, it can be applied to round bottle labeling and square bottle labeling. For example, double-sided labeling for red wine bottles, two-sided labeling for laundry detergent bottles, two-sided labeling for motor oil bottles, etc.


Product features

Compatible with a wide range of product sizes, the maximum size of products can be labeled 500 * 110 * 350mm.

Fast labeling speed, up to 200 bottles per minute (depends on the label size).

The whole machine is made of high quality aluminum alloy, which is corrosion resistant and designed to last up to 10 years.

The machine is easy to install and debug, with the operation video, novice can also quickly start to operate.

Aftersales Service

1.    One-year machine warranty, lifetime maintenance service.

2.    Experienced engineers provide fast and professional 24 hours online guidance.

3.    Provide complete teaching videos and instruction manual, easy to operate and maintain. The video of the operation is stored on a USB shipped with the machine
