Top Surface High Speed Labeling Machine

Gosunm top surface high speed labeling machine can apply labels to products or packages quickly and accurately, which is an important automation equipment in modern industrial production and packaging, and is widely used in a variety of industries, such as food, pharmaceutical, beverage, cosmetics and so on.
The working principle of high speed labeling machine is through the internal control system and drive system, the pre-printed labels will be attached to the surface of the product according to the set position and angle. It is mainly composed of control system, mechanical system, label applicator and sensor.
With its high speed, precision and high degree of automation, high speed labeling machine has become an important and indispensable equipment in modern industrial production.

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • GOSUNM

Product Display

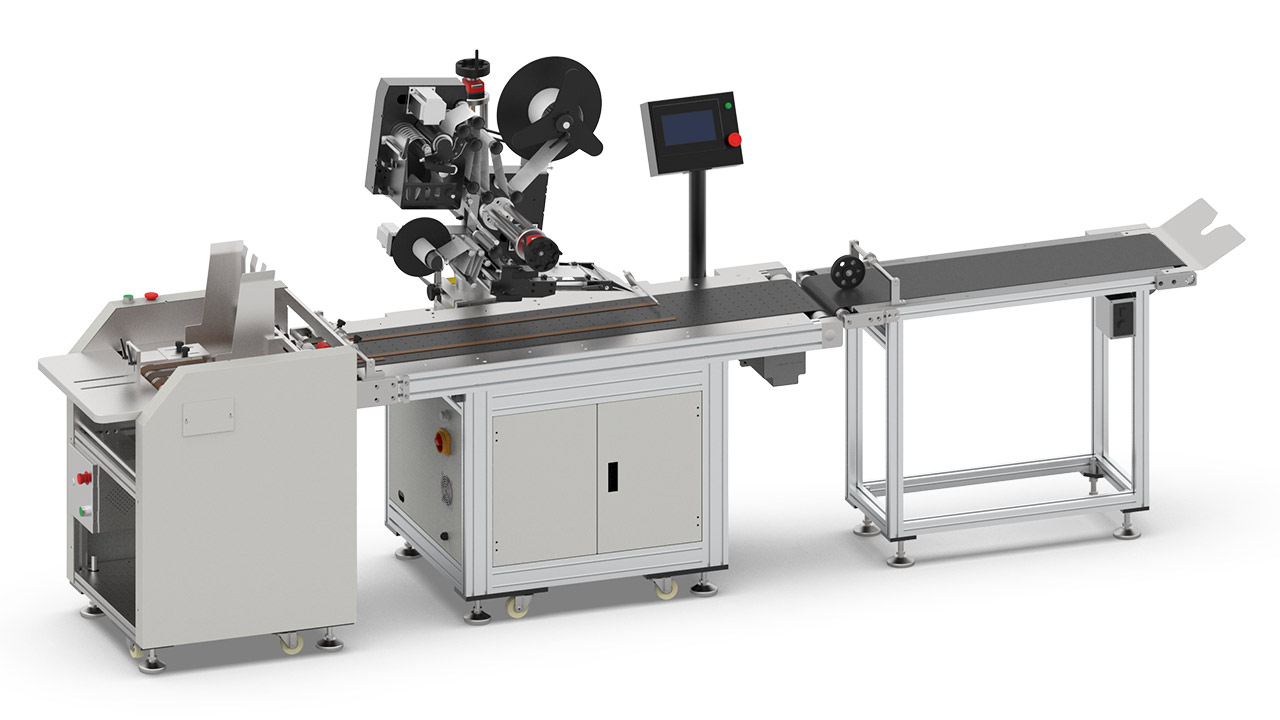

23

Voltage AC220V, 50Hz, single phase
Labeling accuracy ±1-2mm
Labeling Speed 180/min (related to the label size and product size)
Applicable product height Length 20mm-300mm, Width 30-270mm
Available Label Material Length:10-100mm,width 10-100mm
Maximum label incoming size Diameter 280mm, Inside diameter of paper roll 76mm
Gas consumption No need
Working Environment 10-40℃
Environmental temperature 15-85%
Machine Dimension About 1980±100(L)*850±100(W)*1480±100(H)(mm)
Machine Gross Weight 150kg


No. Item Brand Origin
1 Step motor Leadshine China
2 Step motor drive Leadshine China
3 Photoelectric sensors(label) Leuze China
4 Photoelectric sensors(product) Panasonic/Omron Japan/France
5 PLC XINJIE Japan
6 Earth leakage circuit breakers Chint/schneider China/France
7 Touch screen WECON China

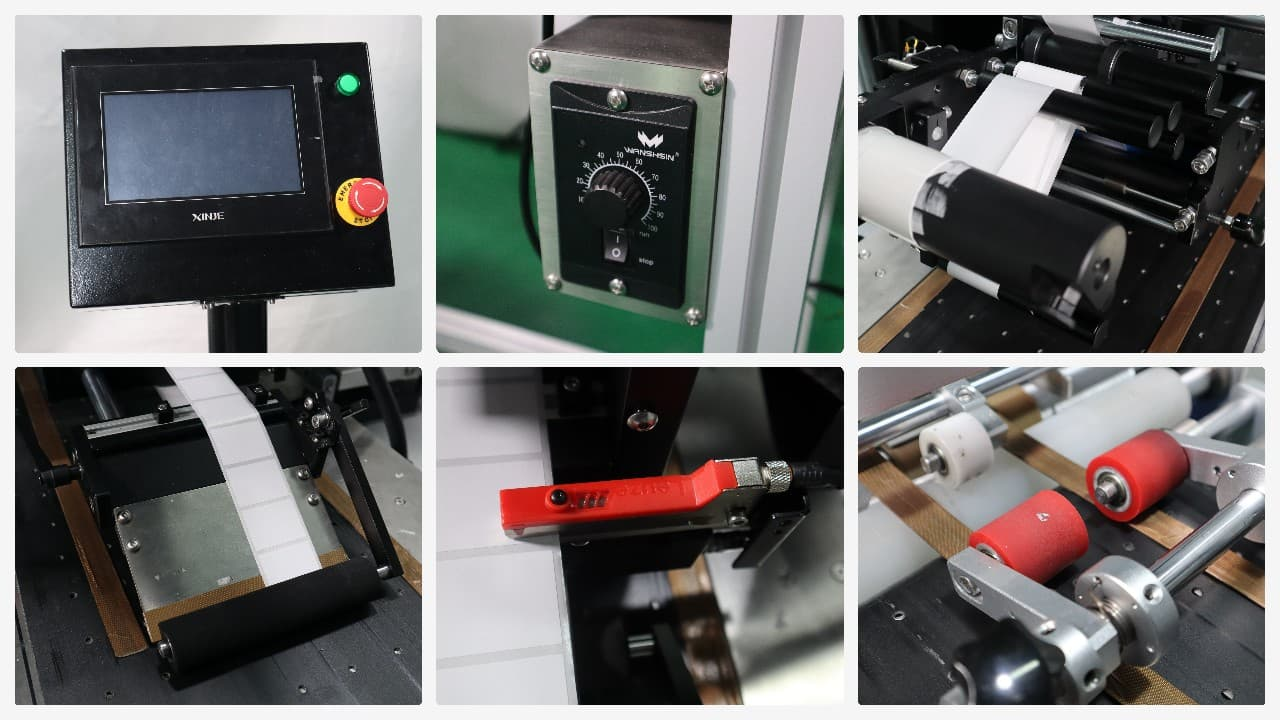

2024-03-27 11-36-39

Control System: The control system is the core part of the high-speed labeling machine, which controls the operation of the machine through the control circuit and program. It usually consists of the main control board, power supply and operation panel. The main control board is responsible for receiving and processing instructions to control the operation of various components; power supply for the labeling machine to provide power to ensure the normal operation of the machine; the operation panel is the human-computer interaction interface, the user can set the parameters of the labeling machine through the operation panel and operation mode.

Mechanical system: the mechanical system is a high-speed labeling machine support and implementation of the part, including the body, conveyor belt, chassis and other devices. The machine body is the supporting structure of the whole equipment, and the conveyor belt is responsible for sending the products to the labeling position.

Labeling head: The labeling applicator is an important part of the high-speed labeling machine, which can accurately and quickly apply the label to the product.

Sensors: The common sensors used in high speed labeling machines include photoelectric sensors, trigger sensors, and pressure sensors. Sensors are the sensing organs of high speed labeling machines that can detect the position, shape and size of the product or package and provide an accurate reference for the labeling process.

These components work together to provide efficient, accurate, and reliable labeling.

113C.1


  • High speed: the conveyor speed of high speed labeling machine can reach 200m/min, and the labeling speed can be self-adapted to the conveyor speed.

  • Automation: high speed labeling machine with automatic labeling device, can automatically identify and apply the label, reducing manual intervention and operational difficulties.

  • High precision: the labeling precision of high speed labeling machine is usually very high, can ensure that each label is accurately pasted on the product.

  • Wide application range: high speed labeling machine can be applied to a variety of different types and specifications of products, as well as different types and sizes of labels.

  • Adjustable: The labeling position, speed and other parameters of the high speed labeling machine can be adjusted as needed to meet different production requirements.

  • High reliability: High-speed labeling machine adopts high-quality mechanical and electronic components, which has high reliability and stability, and can ensure normal operation for a long time.

FAQ

Q: Should I choose real-time printing and labeling machine or cache printing and labeling machine?
A: If each label is different, choose real-time printing and labeling machine, if the same batch of labels are the same, choose
cache printing and labeling machine.

Q:What is the maximum labeling speed?
A:It depends on label size and printing content.

Q:How is the data sent sent to the printer?
A:We usually send the print content to the printer using FastReport /Bartender / ZPL.

Q:What types of connections are supported?
A:The printer supports network port, USB, and serial port.

Q: What is the operating voltage of the machine?
A: The standard working voltage is AC 220V, you can add a transformer to adapt to different voltages.

Q: Does the machine need compressed air?
A: The standard version of the machine needs compressed air, support customized pure electric version.

Q:Can the machine be docked to the system?
A: The machine can be docked system, need to reserve docking API.

Q: Does the printer use thermal transfer printing or thermal printing technology?
A: Both thermal transfer printing and thermal printing technology can be supported.

Q: What scenarios is it applicable to?
A: In logistics, medical, warehousing, fresh food and other scenes that require printing and labeling are widely used.
