Fixed/Lift/Movable Type Telescopic Belt Conveyor

The Telescopic Belt Conveyor is an efficient loading and unloading device that has a wide range of applications in logistics, warehousing, courier, manufacturing, recycling and agricultural industries
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Gosunm

Product Description

Fixed Type Telescopic Belt Conveyor

The Fixed Telescopic Belt Conveyor is a highly efficient and flexible material handling device that can be extended and retracted longitudinally to control the length of the conveyor at any time. It can convey materials in both directions, and the operator end can be raised and lowered, so it can be used in conjunction with other conveyors and material sorting systems to realize automated production of materials in and out of warehouses or vehicle loading and unloading. This equipment can significantly reduce the intensity of cargo loading and unloading and save handling time. The core feature of this model is its telescoping capability, which can freely expand and contract in the longitudinal direction, which is suitable for more complex environments, and the small size of the equipment makes it more suitable for small and medium-sized warehouses and production halls. Fixed Type Telescopic Belt Conveyor is widely used in industries that require large quantities of materials to be handled, such as mines, harbors, and logistics centers.


Parameters Table

                                                       Fixed Type Telescoplc Belt Conveyor
Type Section Number Fixed Length Extended Length Total Length Belt Width
SQ-B-2-4/3-G 2 4000 3000 7000 600/800
SQ-A-3-5/7-G 3 5000 7000 12000 600/800
SQ-A-3-6/8.6-G 3 6000 8600 14600 600/800
SQ-XA-4-5/10-G 4 5000 10000 15000 600/800
SQ-XA-4-6/12.6-G 4 6000 12600 18600 600/800
SQ-XA-4-7/14.6-G 4 7000 14600 21600 600/800
SQ-B-4-7.5/16-G 4 7500 16000 23500 600/800
SQ-B-4-8/17-G 4 8000 17000 25000 600/800
SQ-XB-5-6/16-G 5 6000 16000 22000 600/800
SQ-XB-5-7/19-G 5 7000 19000 26000 600/800
SQ-XB-5-7.5/21-G 5 7500 21000 28500 600/800
SQ-XB-6-6/20-G 6 6000 20000 26000 600/800

Note: The above specification are commonly used by Gosunm Company. If you need other specification, please contact our business department

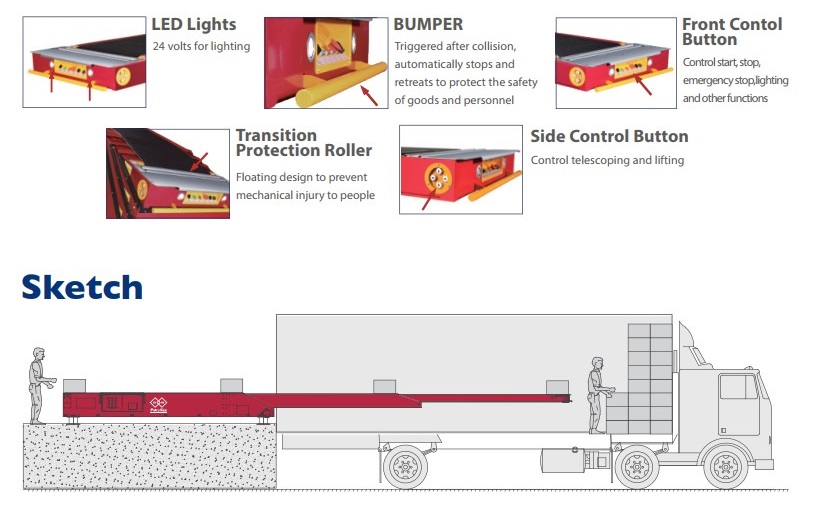

Fixed Type Telescoplc Belt Conveyor details


Lift Type Telescopic Belt Conveyor


The lift type telescopic belt conveyor not only has the telescopic characteristics of the traditional telescopic belt conveyor, but also adds vertical lifting and lowering functions, which greatly expands its application range and efficiency. The model can be adjusted in length and height, the telescopic part is driven by the built-in motor, which can adjust the telescopic length according to the operational requirements, while the lifting function is realized by hydraulic cylinder or electric lifting mechanism, the combination of which makes the equipment flexible to cope with various loading and unloading environments.

Parameters Table

           Lift Type Telescopic Belt Conveyor
Type Section Number Fixed Length Extended Length Total Length Belt Width Lifting Angle
SQ-B-2-4/3-S 2 4000 3000 7000 600/800 0-3°
SQ-A-3-5/7-S 3 5000 7000 12000 600/800 0-3°
SQ-A-3-6/8.6-S 3 6000 8600 14600 600/800 0-3°
SQ-XA-4-5/10-S 4 5000 10000 15000 600/800 0-3°
SQ-XA-4-6/12.6-S 4 6000 12600 18600 600/800 0-3°
SQ-XA-4-7/14.6-S 4 7000 14600 21600 600/800 0-3°
SQ-B-4-7.5/16-S 4 7500 16000 23500 600/800 0-3°
SQ-B-4-8/17-S 4 8000 17000 25000 600/800 0-3°
SQ-XB-5-6/16-S 5 6000 16000 22000 600/800 0-3°
SQ-XB-5-7/19-S 5 7000 19000 26000 600/800 0-3°
SQ-XB-5-7.5/21-S 5 7500 21000 28500 600/800 0-3°
SQ-XB-6-6/20-S 6 6000 20000 26000 600/800 0-3°

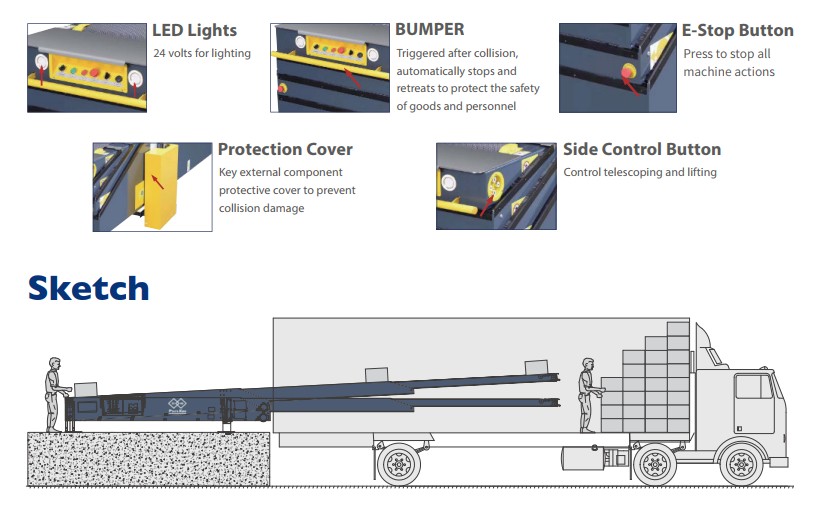

Lift Type Telescopic Belt Conveyor details



Movable type telescopic belt conveyor


Movable type telescopic chain conveyor is especially suitable for applications where the working position needs to be changed frequently. This equipment not only integrates the basic functions of fixed type telescopic belt conveyor, but also can move freely, which greatly improves its application range and convenience.Movable type telescopic belt conveyor mainly consists of body, telescopic mechanism, mobile base and control system. The body is usually made of light and high-strength materials to facilitate movement and stable operation. It is widely used in warehouses, logistics distribution centers, small terminals and other places where flexible configuration of conveyor equipment is required. Especially in environments where space is limited or quick adjustment of the operation site is required, mobile telescopic belt conveyors show unique advantages.

Parameters Table

Movable type telescopic belt conveyor
Type Section Number Fixed Length Extended Length Total Length Belt Width
SQ-B-2-4/3-Y 2 4000 3000 7000 600/800
SQ-A-3-5/7-Y 2 5000 7000 12000 600/800
SQ-A-3-6/8.6-Y 3 6000 8600 14600 600/800
SQ-XA-4-5/10-Y 4 5000 10000 15000 600/800
SQ-XA-4-6/12.6-Y 4 6000 12600 18600 600/800
SQ-XA-4-71/4.6-Y 4 7000 14600 21600 600/800
SQ-B-4-7.5/16-Y 4 7500 16000 23500 600/800
SQ-B-4-8/17-Y 4 8000 17000 25000 600/800
SQ-XB-5-6/16-Y 5 6000 16000 22000 600/800
SQ-XB-5-7/19-Y 5 7000 19000 26000 600/800
SQ-XB-5-7.5/21-Y 5 7500 21000 28500 600/800
SQ-XB-6-6/20-Y 6 6000 20000 26000 600/800

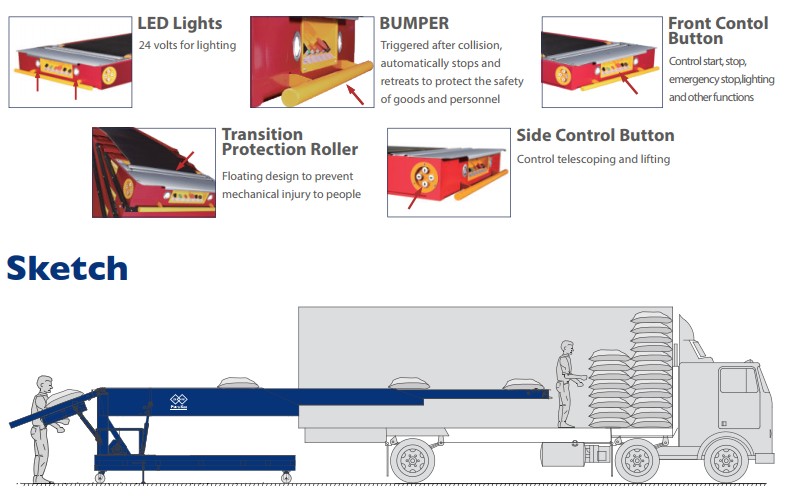

Movable type telescopic belt conveyor details




Rail Type Telescopic Belt Conveyor

The rail type telescopic belt conveyor is usually installed on a fixed rail, which allows the whole equipment to move freely in the horizontal space, while the longitudinal position remains unchanged, facilitating quick docking with other logistics equipment, and is especially suitable for loading and unloading goods in express transit warehouses. With its advanced design and flexible operation, the track-type telescopic belt conveyor provides an efficient and reliable solution for modern logistics and warehouse management. It not only enhances operational efficiency, but also brings significant economic benefits and social value to companies by reducing labor intensity requirements and improving the working environment.



Parameters Table


Rail Type Telescopic Belt Conveyor
Type Section Number Fixed Length Extended Length Total Length Belt Width
SQ-B-2-4/3-Y 2 4000 3000 7000 600/800
SQ-A-3-5/7-Y 3 5000 7000 12000 600/800
SQ-A-3-6/8.6-Y 3 6000 8600 14600 600/800
SQ-XA-4-5/10-Y 4 5000 10000 15000 600/800
SQ-XA-4-6/12.6-Y 4 6000 12600 18600 600/800
SQ-XA-4-7/14.6-Y 4 7000 14600 21600 600/800
SQ-B-4-7.5/16-Y 4 7500 16000 23500 600/800
SQ-B-4-8/17-Y 4 8000 17000 25000 600/800
SQ-XB-5-6/16-Y 5 6000 16000 22000 600/800
SQ-XB-5-7/19-Y 5 7000 19000 26000 600/800
SQ-XB-5-7.5/21-Y 5 7500 21000 28500 600/800
SQ-XB-6-6/20-Y 6 6000 20000 26000 600/800

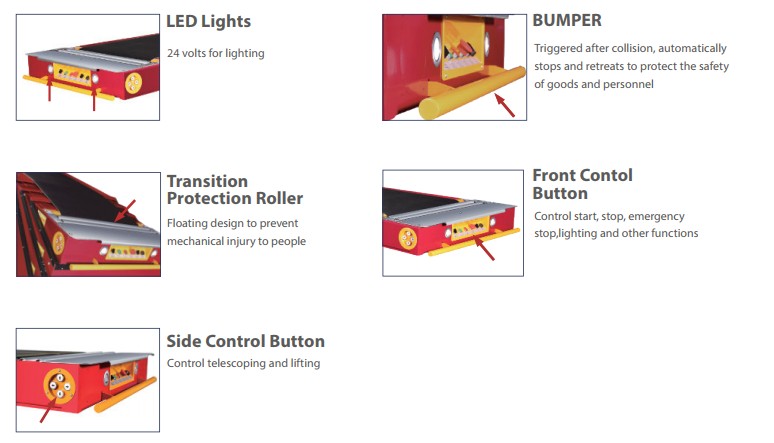

Rail Type Telescopic Belt Conveyor details



Droop Snoot Type Telescopic Belt Conveyor

Droop Snoot Type Telescopic Belt Conveyor is a small belt conveyor with adjustable angle at the front end of Telescopic Belt Conveyor, which can be adjusted to avoid repeated bending work of workers, effectively reduce the labor intensity of loading and unloading goods, and is more suitable for loading and unloading heavy parcels. It is widely used in logistics, express delivery, port, railway station and other places that require large amount of material handling. Especially in the scenario where the loading and unloading height and angle need to be adjusted frequently, this model shows its unique advantages.


Parameters Table


Droop Snoot Type Telescopic Belt Conveyor
Type Section Number Fixed Length Extended Length Total Length Belt Width Swing Arm Length Swing Arm Angle
SQ-B-2-4/3-YB 2 4000 3000 7000 600/800 1500 -25°/+85°
SQ-A-3-5/7-YB 3 5000 7000 12000 600/800 1500 -25°/+85°
SQ-A-3-6/8.6-YB 3 6000 8600 14600 600/800 1500 -25°/+85°
SQ-XA-4-5/10-YB 4 5000 10000 15000 600/800 1500 -25°/+85°
SQ-XA-4-6/12.6-YB 4 6000 12600 18600 600/800 1500 -25°/+85°
SQ-XA-4-7114.6-YB 4 7000 14600 21600 600/800 1500 -25°/+85°
SQ-B-4-7.5/16-YB 4 7500 16000 23500 600/800 1500 -25°/+85°
SQ-B-4-8/17-YB 4 8000 17000 25000 600/800 1500 -25°/+85°
SQ-XB-5-6/16-YB 5 6000 16000 22000 600/800 1500 -25°/+85°
SQ-XB-5-7/19-YB 5 7000 19000 26000 600/800 1500 -25°/+85°
SQ-XB-5-7.5/21-YB 5 7500 21000 28500 600/800 1500 -25°/+85°
SQ-XB-6-6/20-YB 6 6000 20000 26000 600/800 1500 -25°/+85°

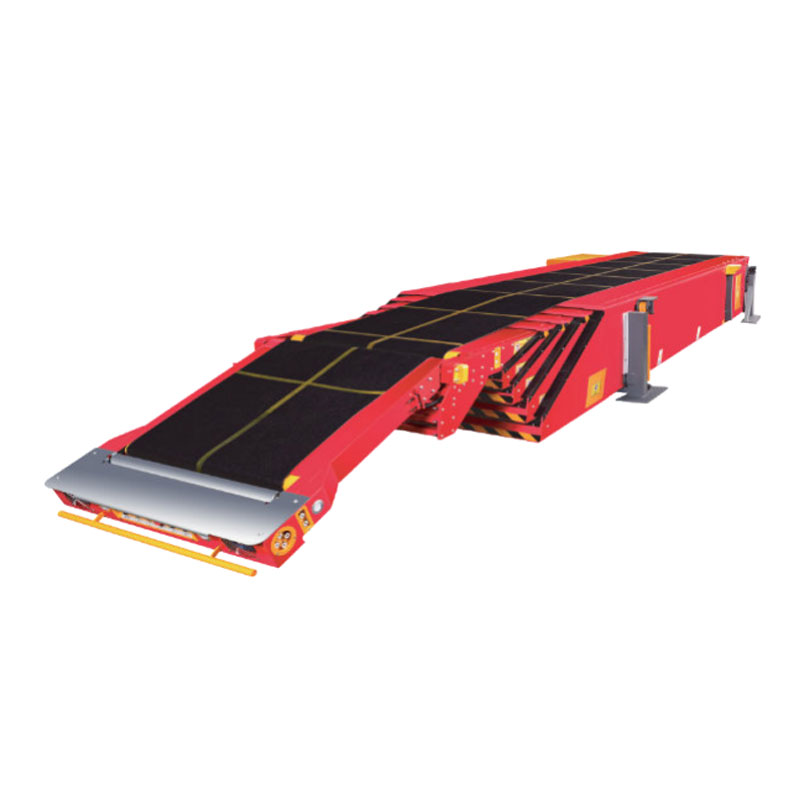

Droop-Snoot-Type-Telescopic-Belt-Conveyor






Module Belt Telescopic Conveyor

Unlike traditional belt type telescopic conveyors, this equipment is a new type of telescopic conveyor that uses plastic module belts as the conveying medium. It has strong load-bearing capacity, impact resistance, and wide applicability for goods. It is mainly used for the transportation of tobacco, food, beverages, meat products, etc. It can also be used to transport larger or heavier goods. The module belt will not deviate during transportation and is easy to replace, and can be washed with water.

Parameters Table

Module Belt Telescopic Conveyor
Type Section Number Fixed Length Extended Length Total Length Belt Width
SQ-B-2-4/3-MM 2 4000 3000 7000 600/800
SQ-A-3-5/7-M 3 5000 7000 12000 600/800
SQ-A-3-6/8.6-MM 3 6000 8600 14600 600/800
SQ-XA-4-5/10-M 4 5000 10000 15000 600/800
SQ-XA-4-6/12.6-M 4 6000 12600 18600 600/800
SQ-XA-4-7/14.6-M 4 7000 14600 21600 600/800
SQ-B-4-7.5/16-M 4 7500 16000 23500 600/800
SQ-B-4-8/17-M 4 8000 17000 25000 600/800
SQ-XB-5-6/16-M 5 6000 16000 22000 600/800
SQ-XB-5-7/19-M 5 7000 19000 26000 600/800
SQ-XB-5-7.5/21-M 5 7500 21000 28500 600/800
S0-XB-6-6/20-MM 6 6000 20000 26000 600/800


Module-Belt-Telescopic-Conveyor



Semi Automatic Telescopic Belt Conveyor

This equipment has added a semi- automatic loading and unloading conveying section on the basis of a  regular  telescopic  machine.  By controlling the up, down, left, and right swing of the conveying section through a hydraulic displacement mechanism, goods can be transported to any corner of the carriage, which is conducive to improving loading and unloading efficiency and saving manpower. It is widely used in e-commerce, express delivery, factories, ports, airports, warehousing and other occasions.

Parameters Table


Semi Automatic Telescopic Belt Conveyor
Type Section Number Fixed Length Extended Length Total Length Belt Width Swing Arm Length Swing Arm Angle
SQ-B-2-4/3-YB 2 4000 3000 7000 600/800 3000 up/down: -8°/+17°, left/right: -15°/+15°
SQ-A-3-5/7-YB 3 5000 7000 12000 600/800 3000 up/down: -8°/+17°, left/right: -15°/+15°
SQ-A-3-6/8.6-YB 3 6000 8600 14600 600/800 3000 up/down: -8°/+17°, left/right: -15°/+15°
SQ-XA-4-5/10-YB 4 5000 10000 15000 600/800 3000 up/down: -8°/+17°, left/right: -15°/+15°
SQ-XA-4-6/12.6-YB 4 6000 12600 18600 600/800 3000 up/down: -8°/+17°, left/right: -15°/+15°
SQ-XA-4-7114.6-YB 4 7000 14600 21600 600/800 3000 up/down: -8°/+17°, left/right: -15°/+15°
SQ-B-4-7.5/16-YB 4 7500 16000 23500 600/800 3000 up/down: -8°/+17°, left/right: -15°/+15°
SQ-B-4-8/17-YB 4 8000 17000 25000 600/800 3000 up/down: -8°/+17°, left/right: -15°/+15°
SQ-XB-5-6/16-YB 5 6000 16000 22000 600/800 3000 up/down: -8°/+17°, left/right: -15°/+15°
SQ-XB-5-7/19-YB 5 7000 19000 26000 600/800 3000 up/down: -8°/+17°, left/right: -15°/+15°
SQ-XB-5-7.5/21-YB 5 7500 21000 28500 600/800 3000 up/down: -8°/+17°, left/right: -15°/+15°
SQ-XB-6-6/20-YB 6 6000 20000 26000 600/800 3000 up/down: -8°/+17°, left/right: -15°/+15°

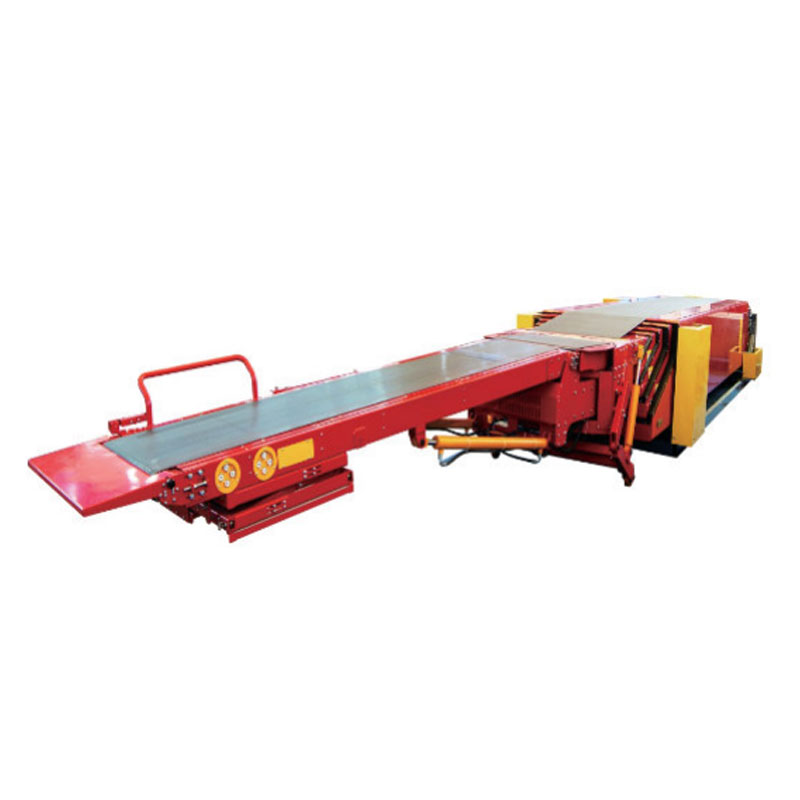

Semi-Automatic-Telescopic-Belt-Conveyor



Solution

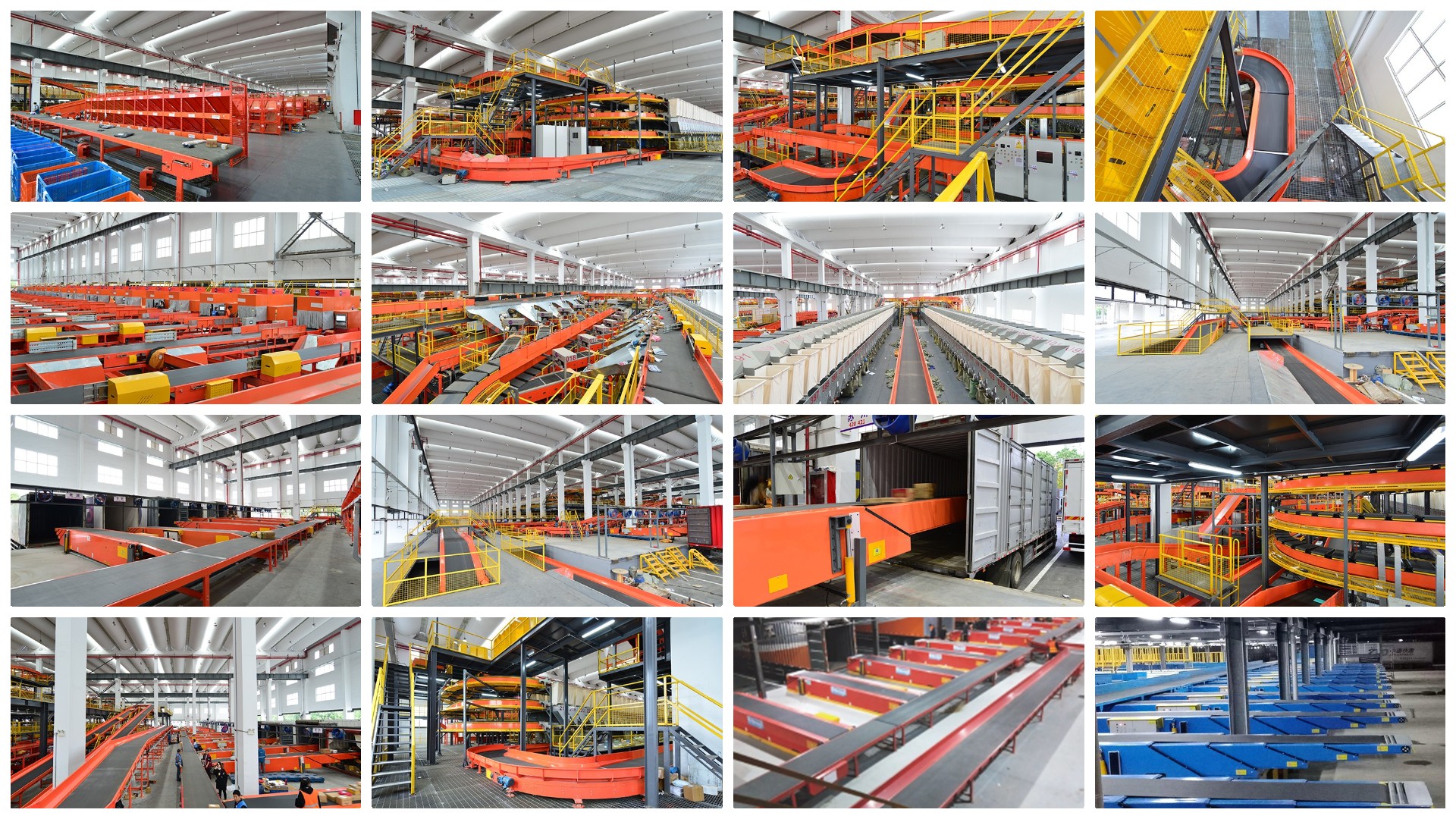

solution
