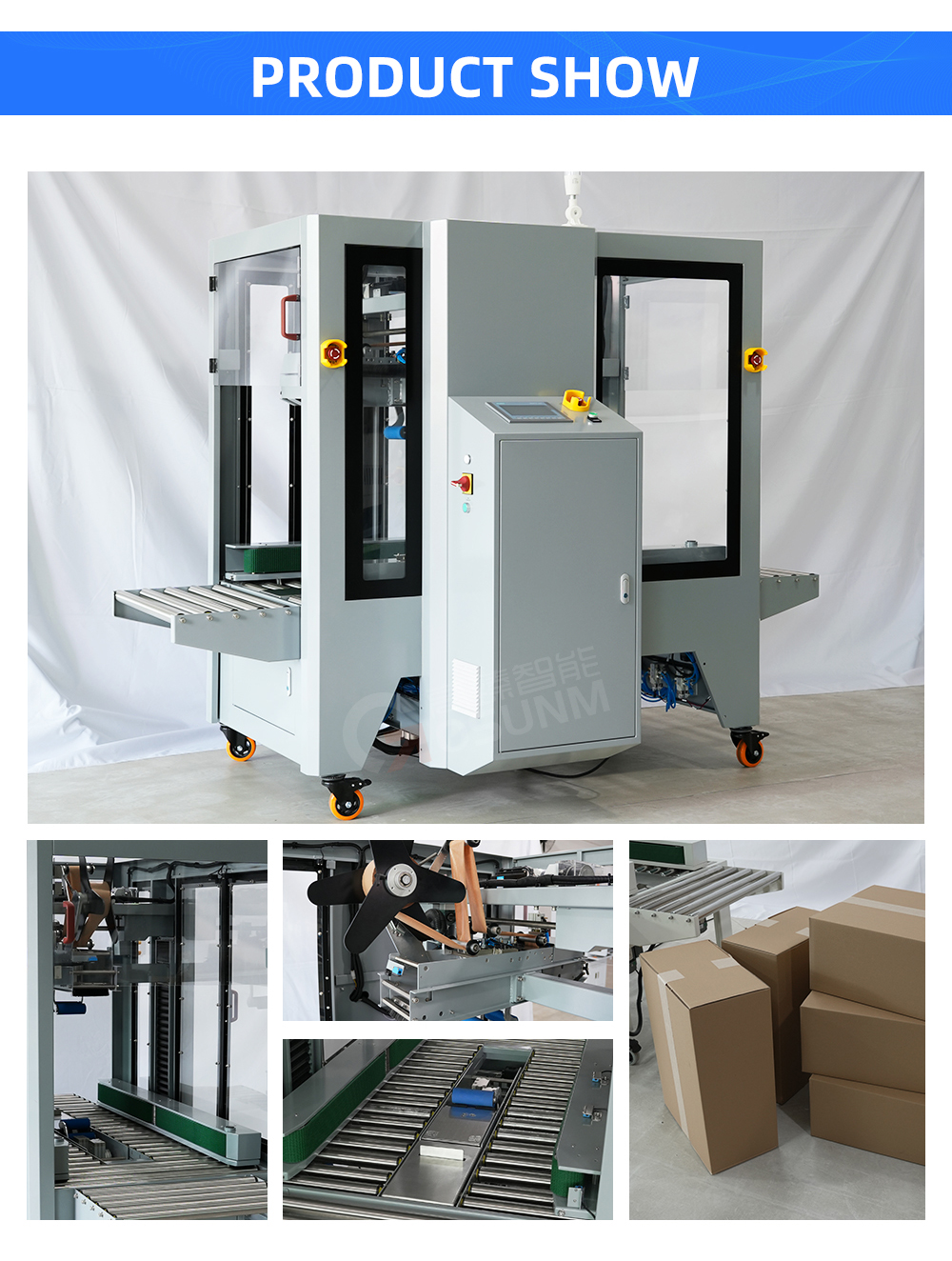

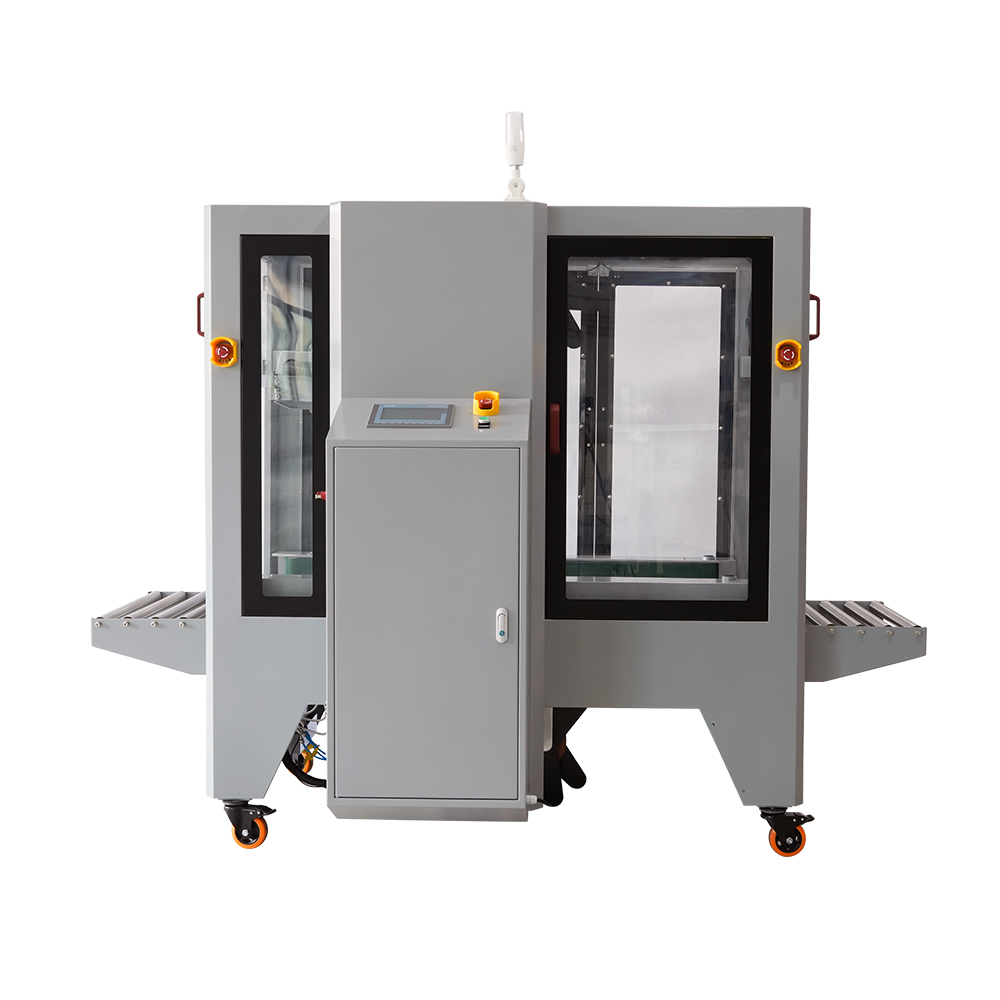

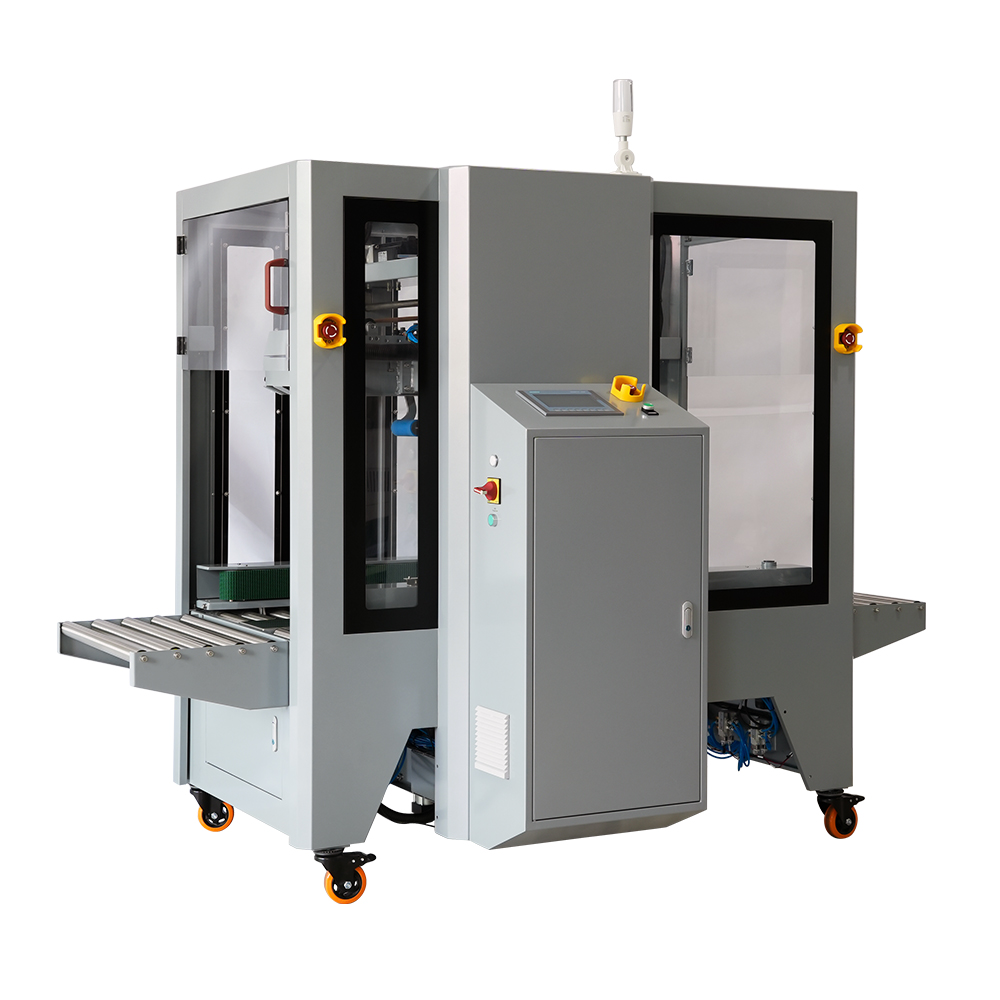

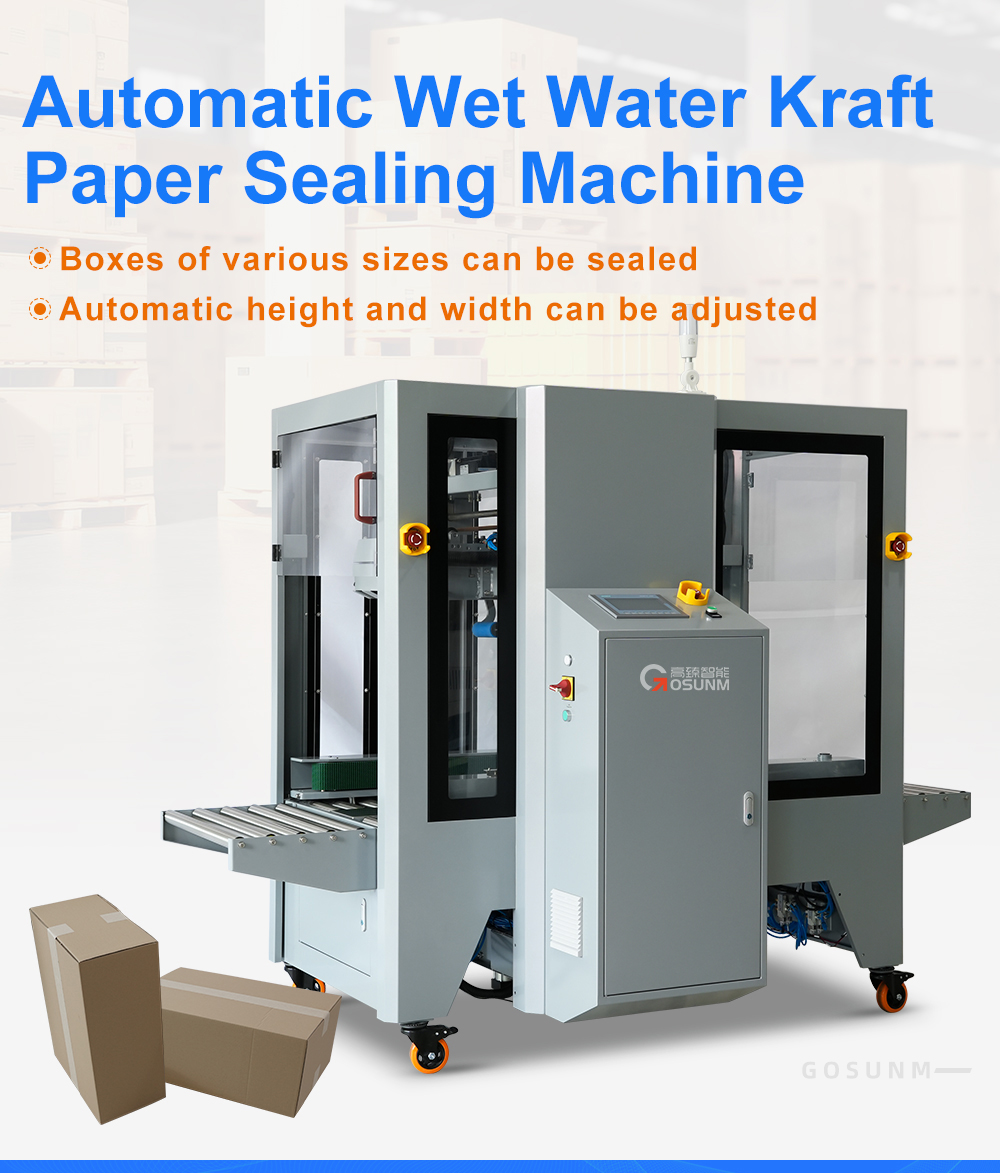

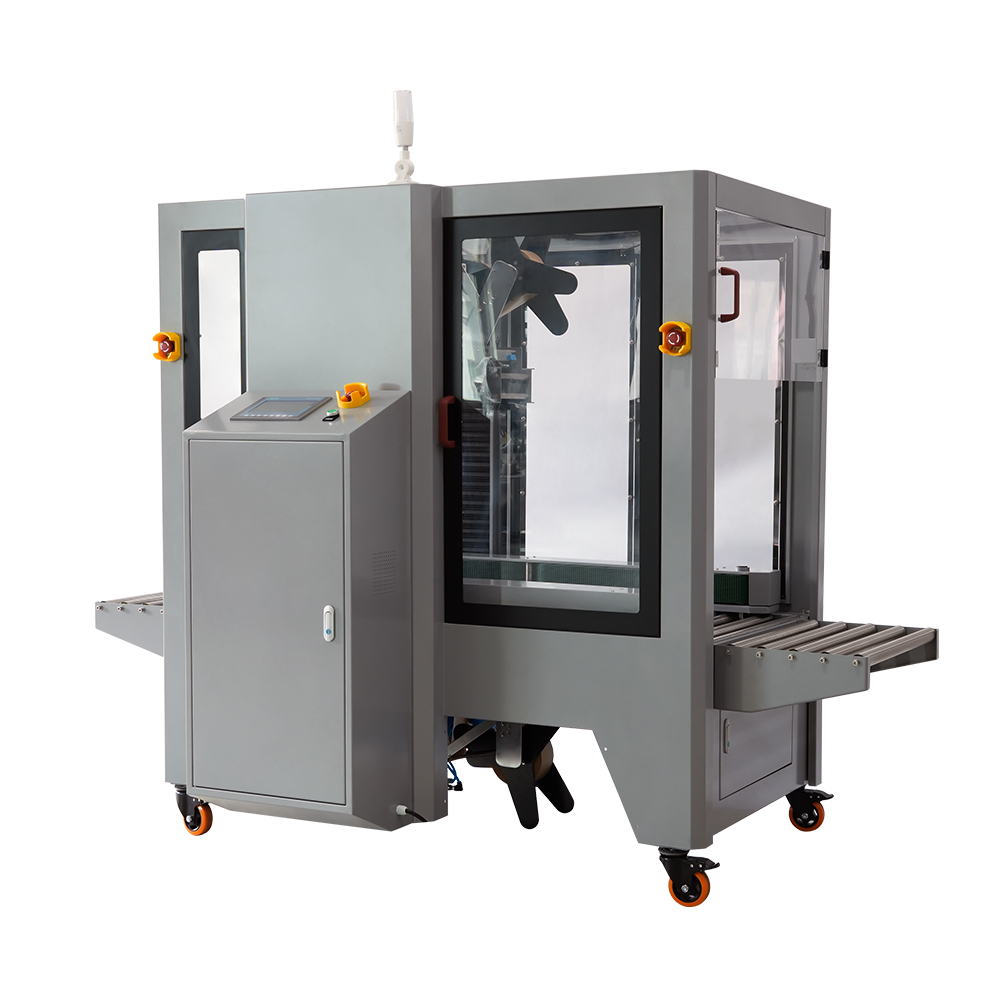

Fully Automatic Water-Activated Kraft Paper Carton Sealing Machine
Product Description
Workflow
1. Carton InfeedPre-formed cartons are conveyed into the sealing machine via a transport line.
2. Guidance and Flap Folding
During conveyance, mechanical guide rails and compression bars automatically and sequentially fold all four top flaps into position.
3. Critical Step: Tape Moistening
The kraft paper tape is drawn from its roll, and its adhesive side precisely glides over a constant wetting device (e.g., a water trough or moistened roller).
This step moistens only the tape to activate its pre-applied dry adhesive layer, instantly making it tacky.
4. Tape Application and Cutting
The now-activated tape is immediately applied along the carton's center seam, after which an automatic cutter trims it to length.
5. Compression and Bonding
A set of pressure rollers follows closely, firmly pressing the applied tape to eliminate air bubbles and ensure full contact with the carton surface, setting the stage for a high-strength bond.
6. Sealed Carton Output
The fully sealed carton is discharged from the machine onto the output conveyor, ready for subsequent operations such as strapping, labeling, or palletizing.
Features and Advantages
1. Superior Eco-FriendlinessBoth the tape and carton are 100% paper-based and fully recyclable.They can be recycled together without separation, aligning perfectly with green packaging trends and sustainability goals.
2. Exceptional Bonding Strength
The kraft paper tape shares the same material properties as corrugated cartons.Once bonded, they virtually fuse into one, offering tear and peel resistance far superior to standard plastic tapes.This makes it ideal for heavy-duty, palletized storage, or long-distance shipping applications.
3. Strong Cost-Effectiveness
The kraft paper tape itself is a low-cost consumable.Although the initial investment in the machine is higher, the long-term savings on material costs are significant.
4. Tamper-Evident and Aesthetic Appeal
It provides a rustic, natural, and premium look.Once applied, the tape cannot be removed without visible damage, offering excellent tamper-evidence and theft deterrence.
5. Seamless Automation Integration

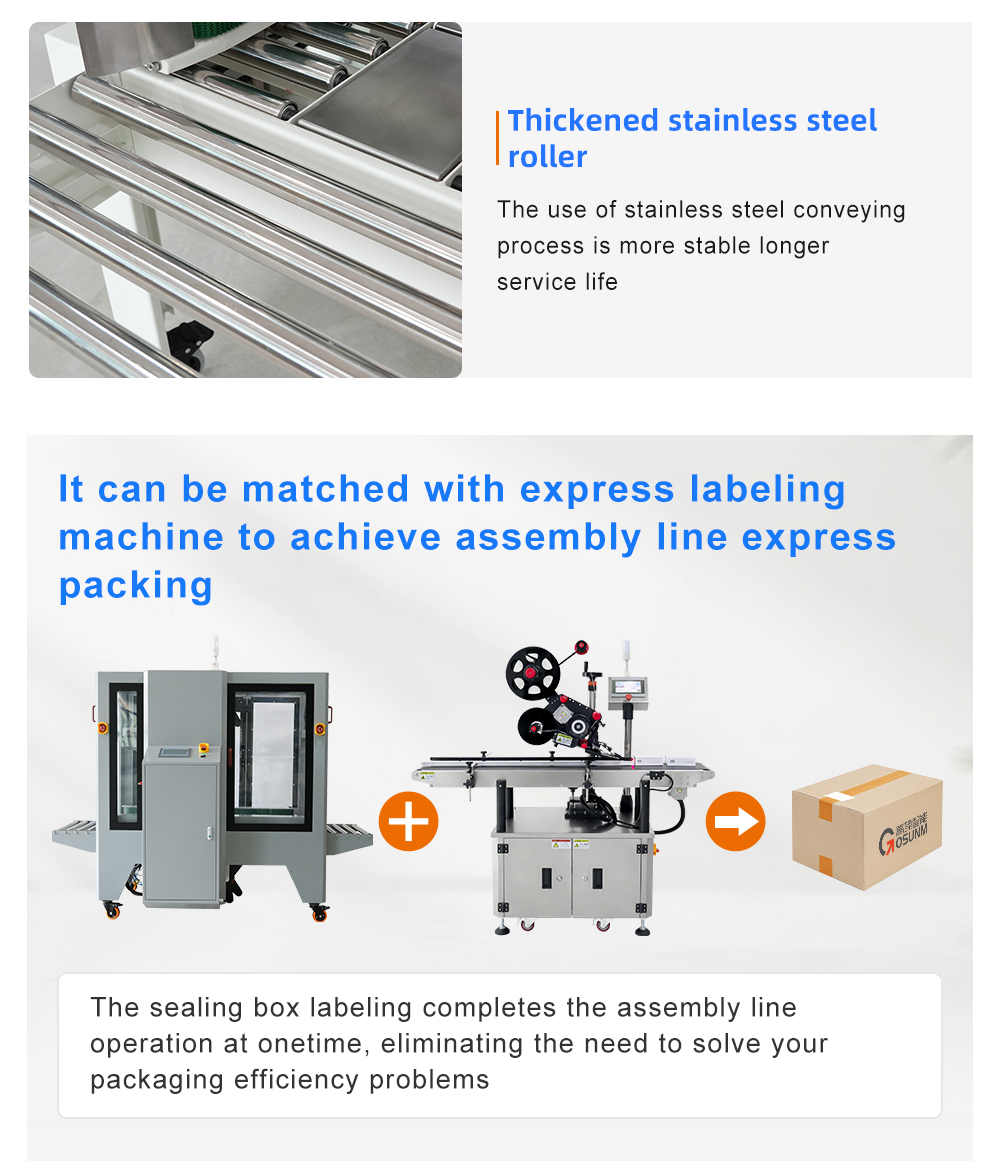

Capable of 24/7 continuous operation. It integrates seamlessly with upstream automatic case packers and downstream automation equipment (like strapping or palletizing systems), drastically boosting line efficiency and reducing labor costs.
| Power Supply | AC220V 50Hz 0.6kW |
| Air Pressure | 0.4 - 0.6 MPa |
| Sealing Method | Water-activated Tape |
| Tape Width | 48 - 102 mm |
| Max. Carton Size | Unlimited (L) × 600 (W) × 600 (H) mm |
| Min. Carton Size | 180 (L) × 160 (W) × 130 (H) mm |
| Tape Roll (OD) | 400 mm |
| Tape Core (ID) | 76 mm |
| Sealing Speed | 20 m/min (Customizable) |
| Work Height | 650 - 750 mm (Adjustable, with casters) |

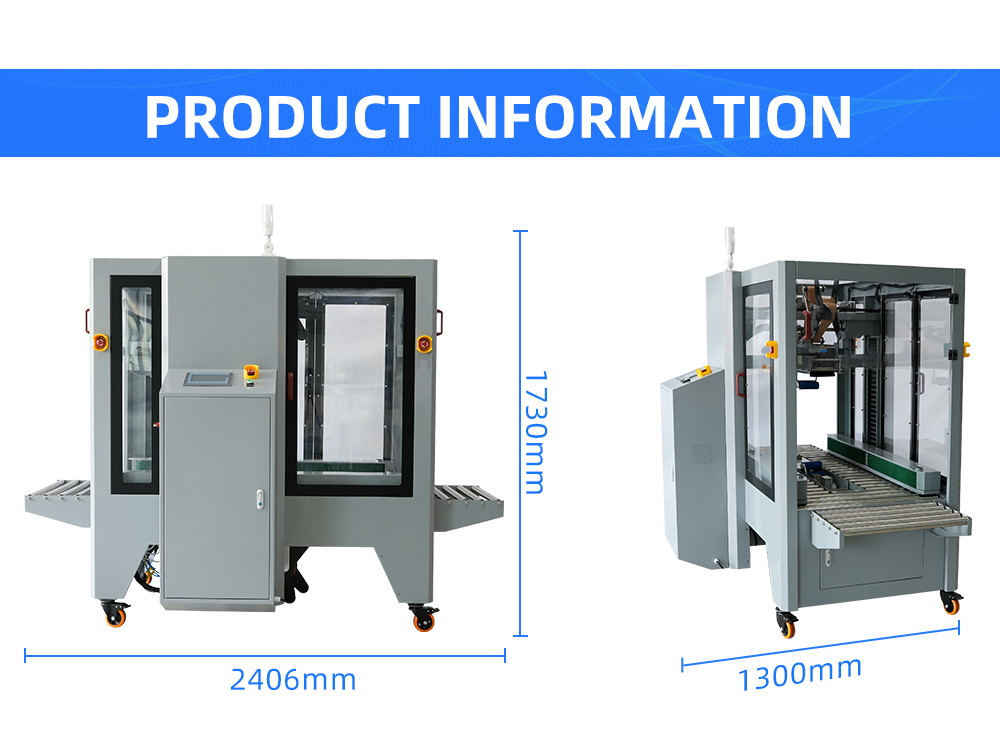

| Machine Dimensions | 2406 (L) × 1300 (W) × 1730 (H) mm |

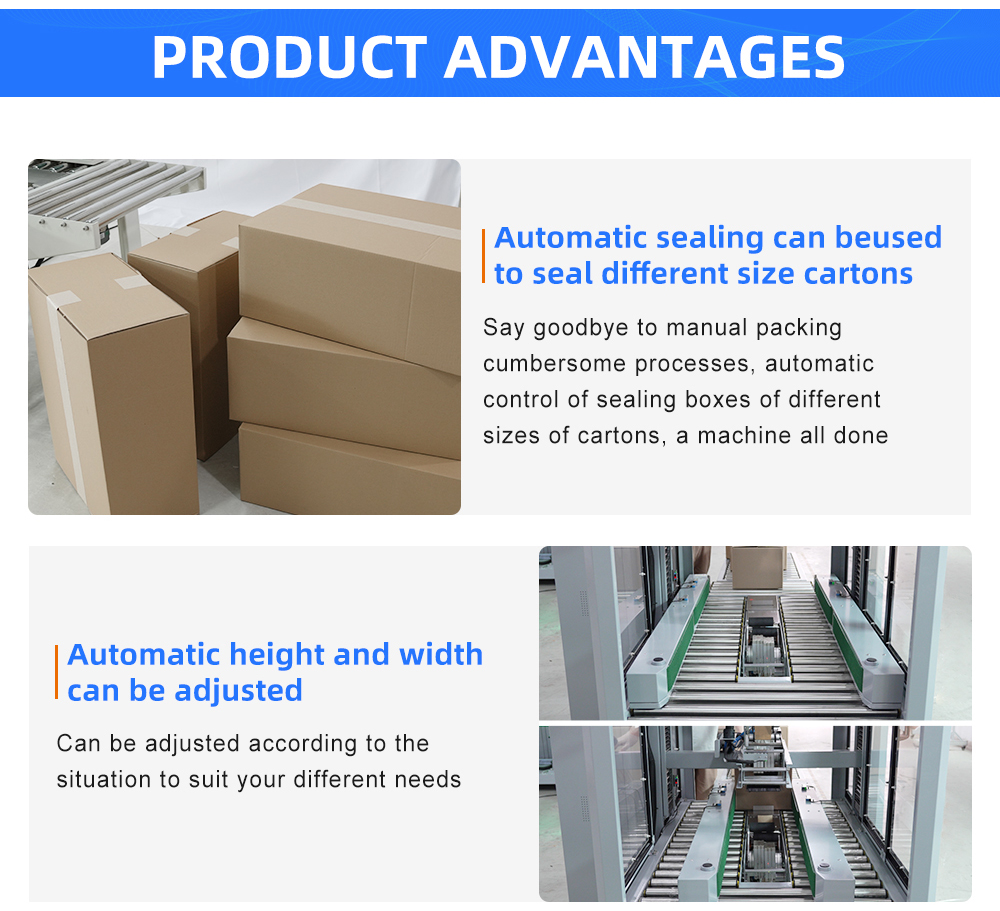

| Key Features | Self-adaptive width conveying, Simultaneous top and bottom sealing, Automatic size adjustment |
