Fully Electric High-Speed Intelligent Bagging Machine
Description Detail
🔹 Overview
The GOSUNM Fully Electric High-Speed Intelligent Packaging Machine is designed for warehouses, e-commerce fulfillment centers, courier hubs, and 3PL logistics providers that require fast, consistent, and cost-effective parcel packaging.
Unlike traditional pneumatic packaging equipment, this overseas version adopts a fully electric servo-driven system, eliminating the need for compressed air while providing higher stability, lower maintenance costs, and quieter operation.
By automatically forming, sealing, and packaging mailing bags, the machine significantly reduces labor requirements and improves shipping efficiency.
⚡ Key Features
High-Speed Packaging
Designed for continuous warehouse operations.
Capable of handling hundreds of parcels per hour depending on parcel size and workflow.
Supports Multiple Mailing Bag Sizes
Compatible bag specifications:
| Parameter | Range |
|---|---|
| Bag Width | 150–480 mm |
| Bag Length | 250–680 mm |
| Thickness | 0.05–0.13 mm |
No machine replacement is required when switching between common bag sizes.
Intelligent Touch Screen Operation
Equipped with a 24-inch Full HD industrial display, operators can easily:
- Set packaging parameters
- Monitor machine status
- View production statistics
- Diagnose alarms
- Manage recipes
Industrial Control System
Powered by:
- Intel Core i7 Industrial Computer
- 8GB RAM
- 256GB SSD
Ensuring stable long-term operation in industrial environments.
Multiple Communication Interfaces
Supports:
- Ethernet
- USB
- WiFi
Easy integration with:
- WMS
- WCS
- ERP
- MES
- Order Management Systems
Compact Structure
Machine Dimensions:
- Length: 1620 mm
- Width: 710 mm
- Height: 1200 mm

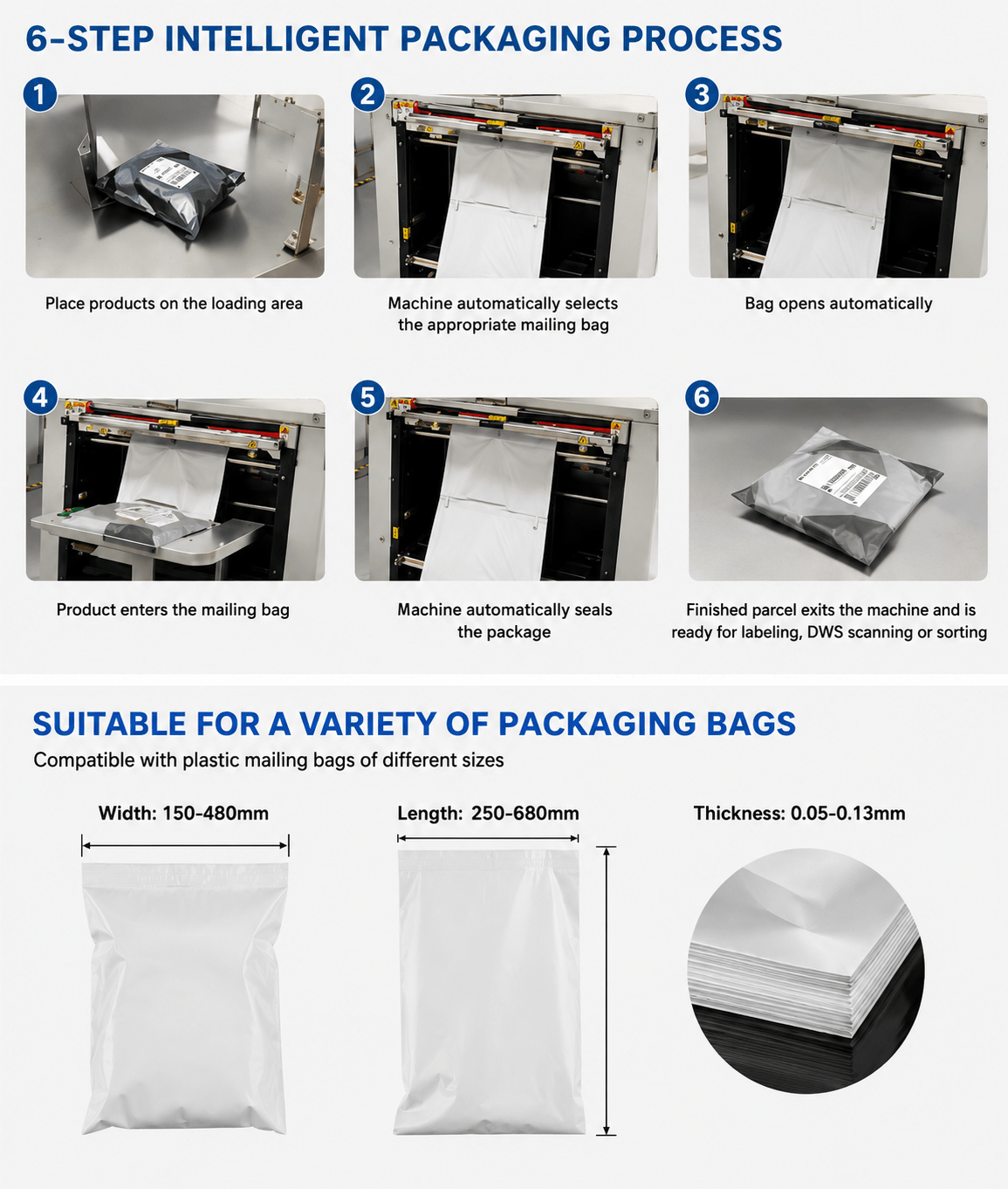

Working Process

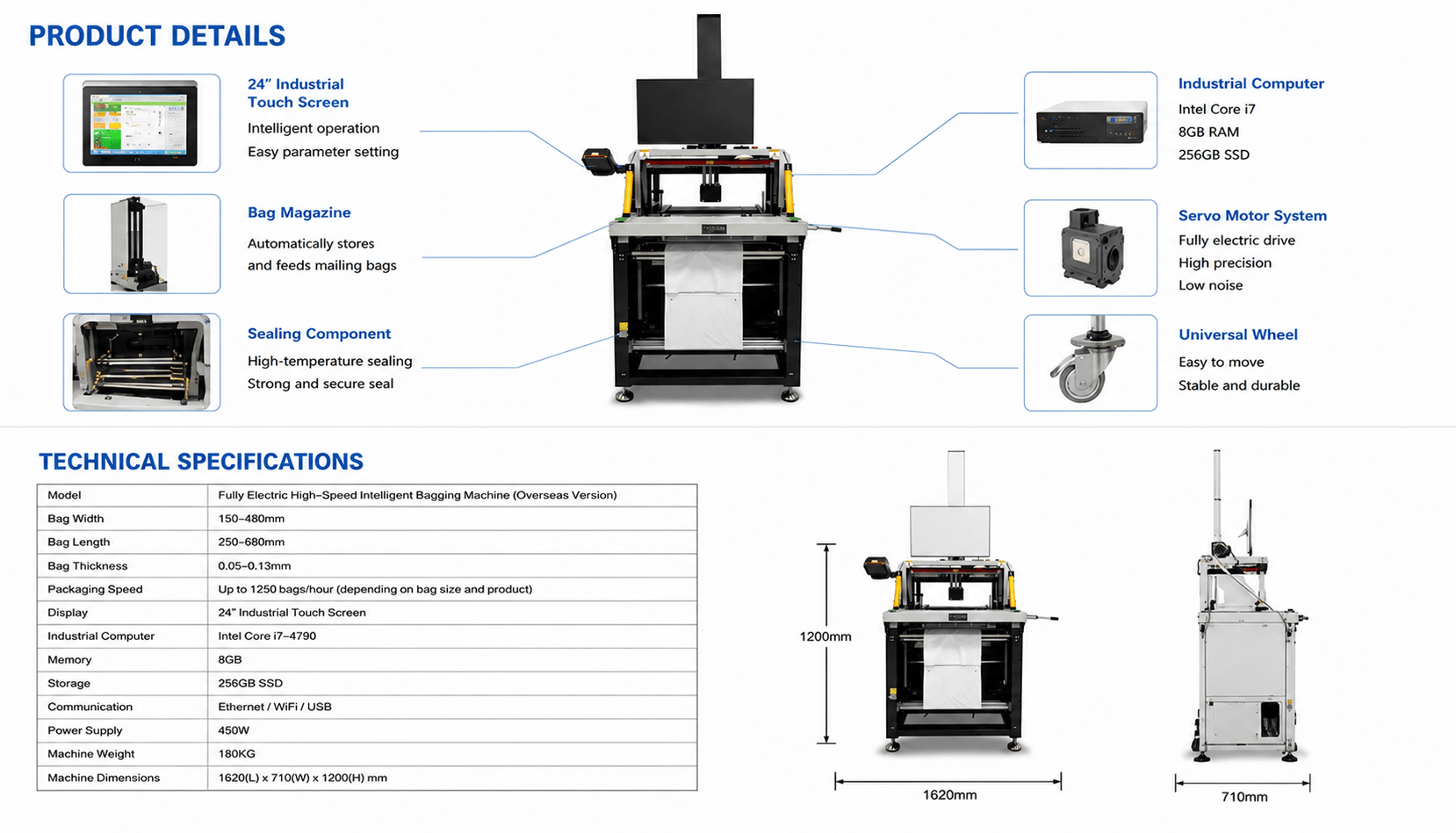

🏭 Technical Specifications
| Item | Specification |
|---|---|
| Machine Type | Fully Electric Packaging Machine |
| Packaging Material | Plastic Mailing Bags |
| Bag Width | 150–480 mm |
| Bag Length | 250–680 mm |
| Bag Thickness | 0.05–0.13 mm |
| Packing Speed | Depends on parcel size |
| Display | 24" Industrial Touch Screen |
| Industrial PC | Intel Core i7-4790 |
| Memory | 8GB |
| Storage | 256GB SSD |
| Communication | Ethernet / USB / WiFi |
| Power Supply | 450W |
| Machine Weight | 180 kg |
| Machine Size | 1620 × 710 × 1200 mm |
📦 Benefits for Warehouse Operations
| Improvement | Benefit |
|---|---|
| Reduced Manual Labor | Lower labor costs |
| Faster Packaging | Higher daily throughput |
| Consistent Sealing | Fewer packaging defects |
| Standardized Parcel Appearance | Better customer experience |
| Lower Maintenance | Reduced downtime |
| Improved ROI | Faster equipment payback |
Why Choose GOSUNM?
GOSUNM specializes in intelligent logistics automation equipment for global warehouses and fulfillment centers.
Our advantages include:
- Independent R&D team
- Custom engineering solutions
- CE-compliant equipment
- Professional overseas support
- Remote technical assistance
- Fast spare parts supply
- WMS/WCS integration experience
- Global installation service
Video
Frequently Asked Questions (FAQS)
What products can this machine package?
It is suitable for soft goods and boxed products such as clothing, cosmetics, books, accessories, electronics, and other e-commerce parcels that fit within the supported mailing bag dimensions.
Does the machine require compressed air?
No. This overseas version is a fully electric model driven by servo motors and does not require an external air compressor.
Can it connect to our warehouse management system?
Yes. The machine supports Ethernet, USB, and WiFi communication and can be integrated with WMS, WCS, ERP, or MES systems through customized interfaces.
Can the machine handle different mailing bag sizes?
Yes. It supports plastic mailing bags with widths from 150–480 mm and lengths from 250–680 mm, allowing quick adjustment for different parcel sizes.
