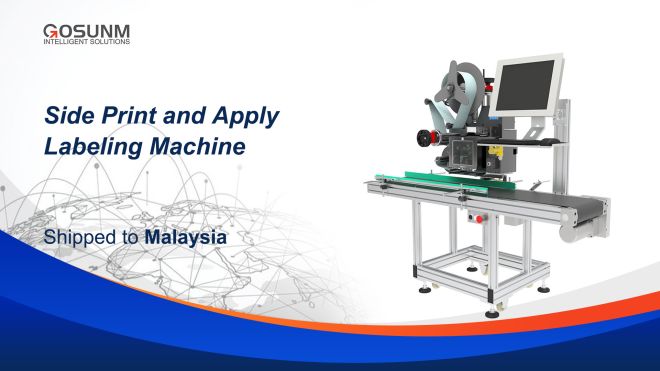

Gosunm High-Efficiency Real-Time Print-and-Apply Labeling System Successfully Delivered

Driven by the global wave of logistics automation, precise and highly efficient end-of-line execution equipment has emerged as the "heart" of modern smart logistics centers. Recently, a customized, real-time print-and-apply labeling integration system—meticulously engineered by Gosunm—successfully completed its factory acceptance testing and has officially departed for the project site. This milestone not only marks another breakthrough in our flexible logistics packaging technology but also serves as further validation of Gosunm’s profound expertise in addressing complex B2B automation requirements.

The core equipment delivered in this shipment comprises a real-time side-labeling system and a real-time front-swing-arm labeling system. Tailored to accommodate the client's diverse range of packaging formats—spanning everything from large-scale palletized stacks to delicate small-parcel products—this solution provides a highly targeted, closed-loop automated labeling workflow. It effectively resolves the critical pain points associated with traditional manual labeling, such as low efficiency, susceptibility to errors, and the inability to achieve real-time data synchronization.

Core Technology Analysis: Gosunm Real-time Print-and-Apply Labeling

In the logistics industry, labeling is far more than just affixing a piece of paper; it serves as the very starting point for digital tracking. The system delivered in this project embodies Gosunm’s unwavering pursuit of the highest standards in precision and stability.

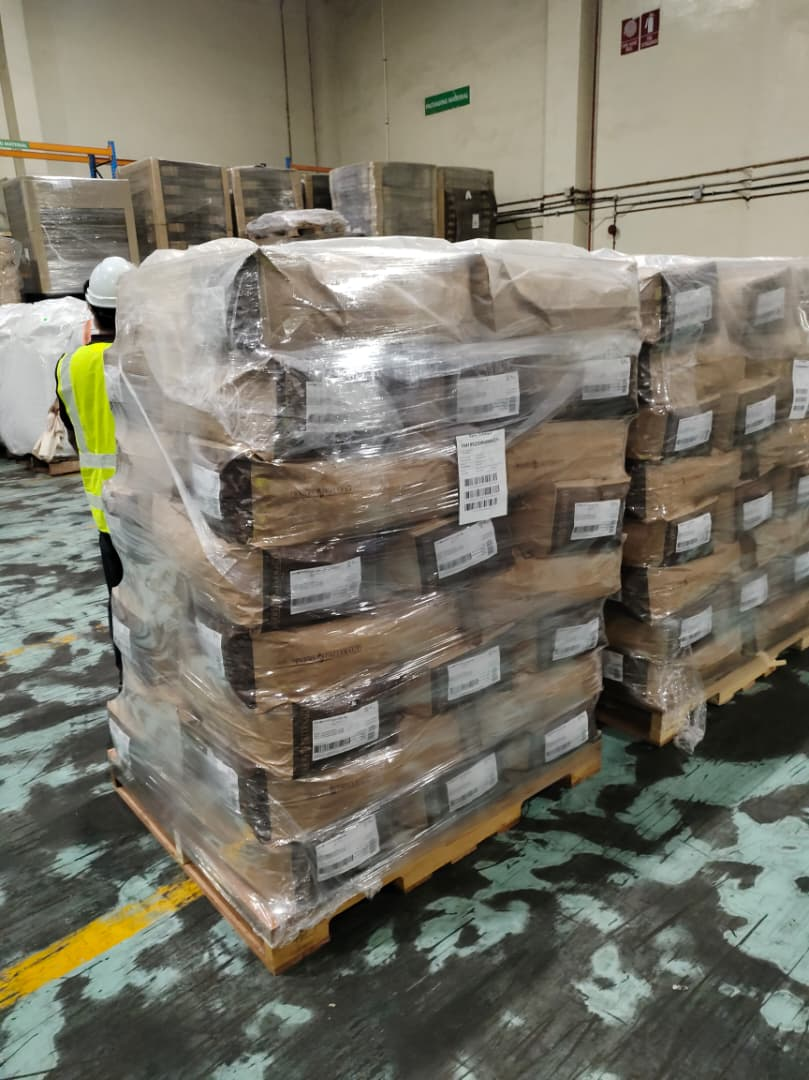

1. Seamless Compatibility with Diverse Labeling Formats: This system comprises two side-labeling units and two front-swing-arm labeling units, capable of automatically adjusting the labeling position to match the specific geometric characteristics of the packaging. For palletized products, the system utilizes large-format 15x21 labels applied in a vertical orientation, ensuring that critical information remains clear and legible throughout the transport of large-area pallets.
For small-package products, the system employs a compact design that mounts the labeling unit directly above the conveyor line, applying 16x10 labels in a horizontal orientation. This "overhead space utilization" strategy effectively overcomes the spatial constraints often imposed by limited clearance between production lines.

2. Millisecond-Level Real-Time Printing and Response: The system features a deep integration of high-specification print engines and uniformly adopts a "short-edge leading" label-dispensing method. This means that the content of each label is generated instantaneously—just moments before application—enabling the system to print unique dynamic QR codes or logistics documents based on real-time data fed from upstream vision scanning systems or the Warehouse Management System (WMS). The margin of error for label placement is strictly controlled within ±1mm.

Robust Industrial-Grade Configuration: Ensuring "Never-Down" Production Lines

As a technology-driven industry leader, Gosunm makes no compromises regarding its core electrical configurations, ensuring that equipment maintains stable output even within high-temperature, high-frequency industrial environments.

The Intelligent Control Core

As a flagship product among micro-PLCs, this system delivers powerful motion control capabilities and exceptional processing speeds, ensuring precise synchronization between the print engine, pneumatic swing arm, and conveyor line velocity. Paired with an authentic Mitsubishi touchscreen interface, operators can intuitively monitor the operational status of each labeling machine and receive real-time feedback on any anomalies.

Early Warning and Self-Diagnostic System

To minimize downtime, the system features a comprehensive, built-in alarm mechanism:

• Label Depletion Warning: The system automatically displays a notification on the touchscreen before the ribbon or label supply runs out.
• Pneumatic Cylinder Monitoring: The extension and retraction timing of the pneumatic cylinders is monitored with millisecond-level precision to prevent labeling errors caused by fluctuations in air pressure.
• Vacuum Sensing Technology: The system incorporates precise vacuum sensing points to ensure that the suction head executes the labeling command only after a label has been fully secured—thereby eliminating the possibility of "missed labels" at the source.

Why Choose Gosunm? An In-Depth Comparison of Competitive Advantages

When selecting a logistics automation provider, many enterprises find themselves torn between generic, off-the-shelf solutions and deeply customized systems. The following is a comprehensive comparison of Gosunm versus standard vendors regarding comparable product offerings.


Through integration via open interfaces with printing software and computer systems, the Gosunm real-time print-and-apply labeling system can seamlessly interface with customers' existing ERP or MES systems, enabling "fully paperless" management across the entire workflow—from order generation to physical product labeling.

FAQs Regarding Real-time Print & Apply Labeling Systems

Q1: What is the difference between a real-time Print & Apply system and a standard labeling machine?

A: Standard labeling machines can only apply pre-printed labels supplied in rolls. In contrast, Gosunm’s real-time Print & Apply system features a built-in print engine capable of generating variable content—such as different shipping addresses, weights, or order numbers—within just 0.5 seconds prior to application. This makes it ideally suited for the flexible sorting requirements of modern logistics operations.

Q2: Does the system have specific requirements regarding label size or material?

A: The system offers exceptional versatility. It has successfully passed compatibility tests for two specific label sizes: 15 × 21 cm and 16 × 10 cm. As long as the label's backing paper meets standard specifications for automated labeling, the system is compatible with both paper-based and synthetic film labels.

Q3: Will labeling accuracy be compromised if the production line speed increases?

A: The system demonstrates exceptional stability at throughput rates ranging from 1 to 10 items per minute, maintaining a labeling accuracy of ±1 mm. By utilizing high-speed pulse control via a Mitsubishi FX5U PLC, we can dynamically adjust the label application position to compensate for the conveyor line's real-time speed.

Q4: What are the site requirements for installing the equipment?

A: Gosunm’s core design philosophy is "Adaptation to the Customer." For instance, in this specific project, to address the critical challenge of limited spacing between existing equipment, we designed an overhead mounting configuration positioned directly above the conveyor line. Rapid deployment is possible provided the floor is level and access to power and compressed air sources is available.


Gosunm is dedicated to delivering "Tangible Efficiency" to the global logistics industry. If you are currently facing challenges such as disorganized label management, high labor costs, or difficulties with system integration, we invite you to contact our technical team to receive a customized, intelligent labeling solution tailored specifically to your needs.
