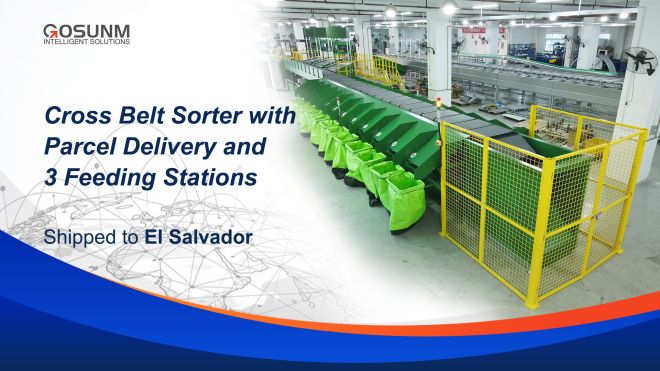

Cross Belt Sorter with Parcel Delivery and 3 Feeding Stations Successfully Shipped

Recently, the intelligent sorting system for cross-belt e-commerce has successfully completed production and debugging and has been officially shipped to the project site. This shipment marks the project's entry into the delivery and implementation phase, which will significantly improve the customer's logistics processing capabilities.

The client's primary requirement was the ability to effectively handle multiple sizes and batches of parcels, with a processing capacity of 4,000–6,000 pieces per hour. gosunm, designed for medium-to-high-speed processing scenarios, customized a parcel feeder with a cross-belt sorting system. This system is suitable for mixed-category parcel sorting environments and can be widely applied in e-commerce warehousing, express delivery transfer centers, and regional distribution hubs.

Key Features of the Cross-Belt Sorting System

This equipment integrates multiple automation technologies to achieve intelligent operation throughout the entire process, from information collection to sorting execution:

• Automatic Identification and Data Acquisition: Enables package barcode scanning, weight detection, and volume measurement, while also supporting image acquisition to improve data integrity.
• Multi-Port Precise Sorting: Configured with 23 normal sorting ports + 1 abnormal sorting port (NG), automatically allocating package flow according to system logic.
• High-Speed ​​Stable Conveyor System: Conveyor speeds reach 1.5–2.0 m/s, ensuring continuous and stable operation during peak periods.
• Automatic Abnormal Package Handling Mechanism: Automatically diverts packages with abnormal identification or that do not meet the criteria, improving overall system reliability.

Technical Parameters and Application Scope

This system is designed to balance efficiency and accuracy, accommodating a variety of sizes and weights:

Package Size Range:
Minimum: 100 × 100 × 10 mm
Maximum: 550 × 500 × 400 mm
Weight Range:
Minimum: 100g
Maximum: 30kg
Measurement Accuracy:
Volume Measurement Accuracy: ±10mm
Weighing Accuracy: ±20g
Equipment Structural Parameters:
Conveyor Height: 1700mm
Number of Sorting Ports: 24

Cross belt Sorting System Configuration and Structure

The entire system consists of multiple modules working together to achieve an efficient workflow:

• Cross-belt sorting host
• Automatic parcel lifting system
• Multi-station feeding platform (four-stage DWS)
• Control system and user interface
• Steel structure operating platform
• Large-capacity parcel container configuration

Through modular design, the system possesses excellent scalability and on-site adaptability.

Rigorous Testing Ensures Stable Delivery

Before shipment, gosunm has completed comprehensive testing and verification of the equipment, including:

• Functional operation testing
• Sorting accuracy verification
• Multi-size package compatibility testing
• Continuous operation stability testing

All test results meet design standards and are documented with videos and documentation, ensuring rapid installation and deployment upon arrival at the site.

Driving Logistics Automation Upgrades

This shipment not only marks a significant milestone in the project but also demonstrates the widespread application of intelligent sorting technology in the logistics industry. Through the deployment of automated systems, businesses can:

• Improve sorting efficiency
• Reduce labor costs
• Reduce error rates
• Optimize overall operational processes

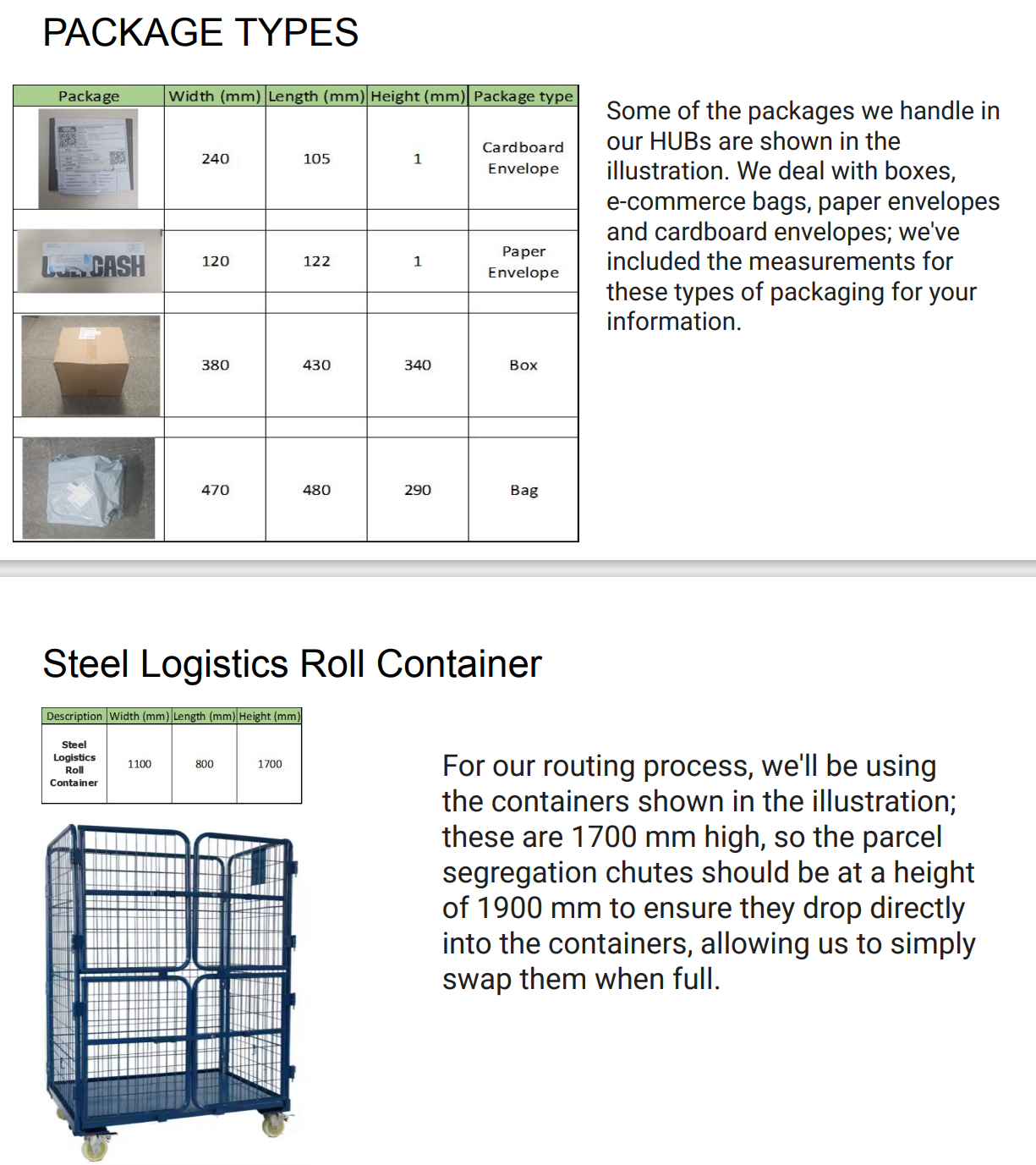

With the continued growth in demand for smart logistics, gosunm offers lifetime free software upgrades. These efficient sorting systems will play a crucial role in more industry scenarios. Customers also have needs for downstream equipment for logistics sorting machines, including the selection of material baskets. gosunm has also found a supply chain to support its customers, helping them with packaging and shipping.

FAQs

Q1: Which industries is this sorting system suitable for?

A: Suitable for e-commerce warehousing, express delivery, third-party logistics (3PL), and distribution centers.

Q2: Does the system support multiple package sizes?

A: Supports packages from small to medium-to-large sizes, covering a wide range of sizes.

Q3: How is the sorting error rate controlled?

A: Through multiple verification methods including scanning, weighing, and volume measurement, the sorting error rate is significantly reduced.

Q4: Does it support future expansion?

A: The system adopts a modular design and can be expanded according to business growth.

Q5: How long is the equipment installation cycle?

A: Depending on the site conditions, the installation and commissioning cycle is generally several weeks.
